Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk

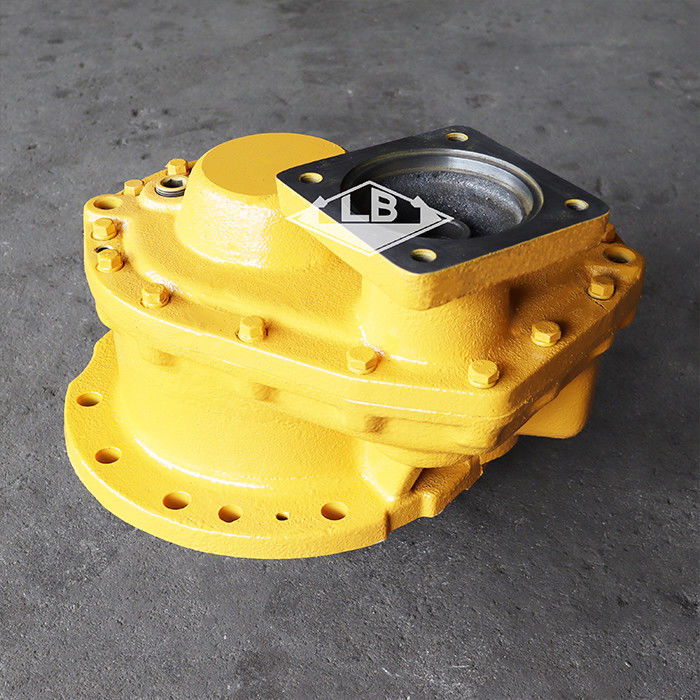

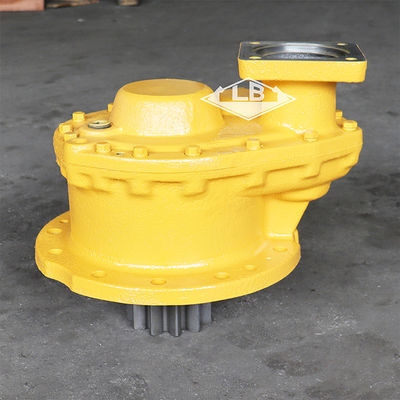

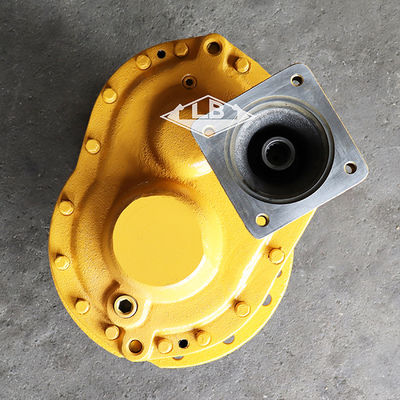

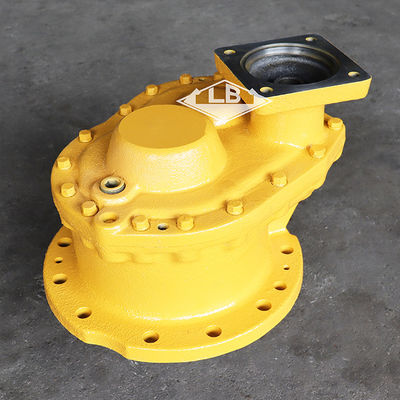

| Pnama seni | E70 MS070 Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 096-1917 0961917 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 11T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 75kg | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian untuk EXCAVATOR E70 Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1-31. | 096-1917 | [1] | Swing Gear ASSY. | |
| 1. | 093-2359 | [1] | Pengukuran | |
| 2. | 096-6838 | [1] | PIPE | |
| 3. | 093-4402 | [1] | Pergaulan | |
| 4. | 095-0967 | [1] | PLUG | |
| 5. | 095-0589 | [22] | BOLT | |
| 6. | 095-0816 | [22] | PEMANAS, SPRING | |
| 7. | 096-6848 | [1] | PELUAR | |
| 8. | 093-4406 | [1] | Pengemasan | |
| 096-9391 | [1] | Pengemasan | ||
| 9. | 095-2071 | [1] | Keterangan: | |
| 10. | 093-1908 | [1] | KOLER | |
| 11. | 096-1898 | [1] | Gear | |
| 12. | 093-1911 | [1] | KOLER | |
| 13. | 095-7203 | [1] | SHAFT | |
| 14. | 095-2072 | [1] | Keterangan: | |
| 15. | 095-1299 | [2] | PIN, DOWEL | |
| 16. | 093-4408 | [1] | KASING | |
| 17. | 095-0968 | [1] | PLUG | |
| 18. | 095-2073 | [2] | Keterangan: | |
| 19. | 096-1897 | [1] | PINION |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 20. | 095-0504 | [2] | BOLT | |
| 21. | 095-0817 | [2] | PEMANAS, SPRING | |
| 22. | 096-6839 | [1] | Pengendali | |
| 23. | 095-2069 | [1] | Keterangan: | |
| 24. | 093-1902 | [1] | KOLER | |
| 25. | 096-1931 | [1] | Gear | |
| 26. | 093-1906 | [1] | KOLER | |
| 27. | 095-2074 | [1] | Keterangan: | |
| 28. | 093-4416 | [1] | SEAL | |
| 29. | 095-1678 | [1] | O-RING | |
| 30. | 093-4411 | [1] | PELUAR | |
| 31. | 093-4413 | [1] | SHAFT |
