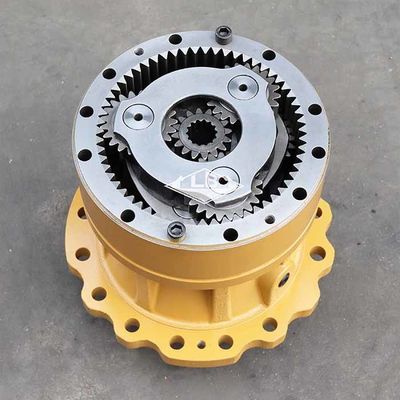

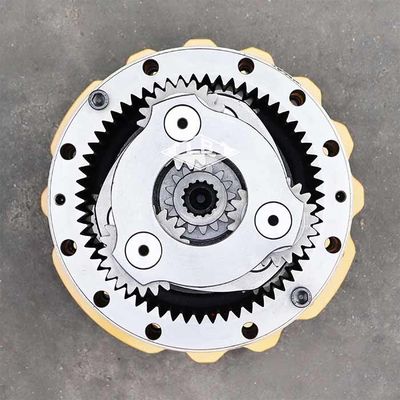

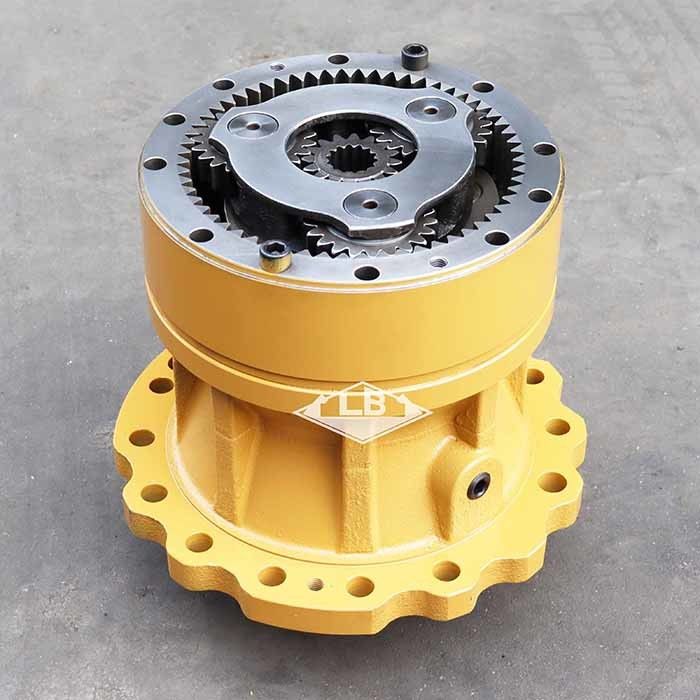

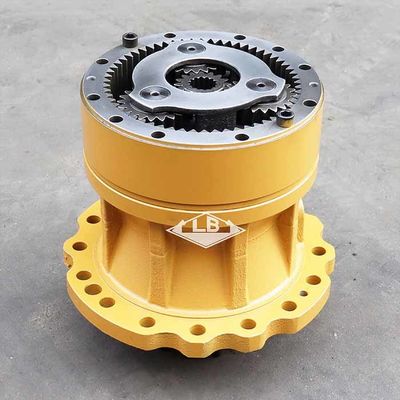

GEARBOX Ayun E 311C 311D 312C 312D 169-5549 1695549 E311 E311C SWING
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E311 E312 Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 169-5549 | |||||
| NO.1 gigi spline gear matahari | 14 spline | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 95kg | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk

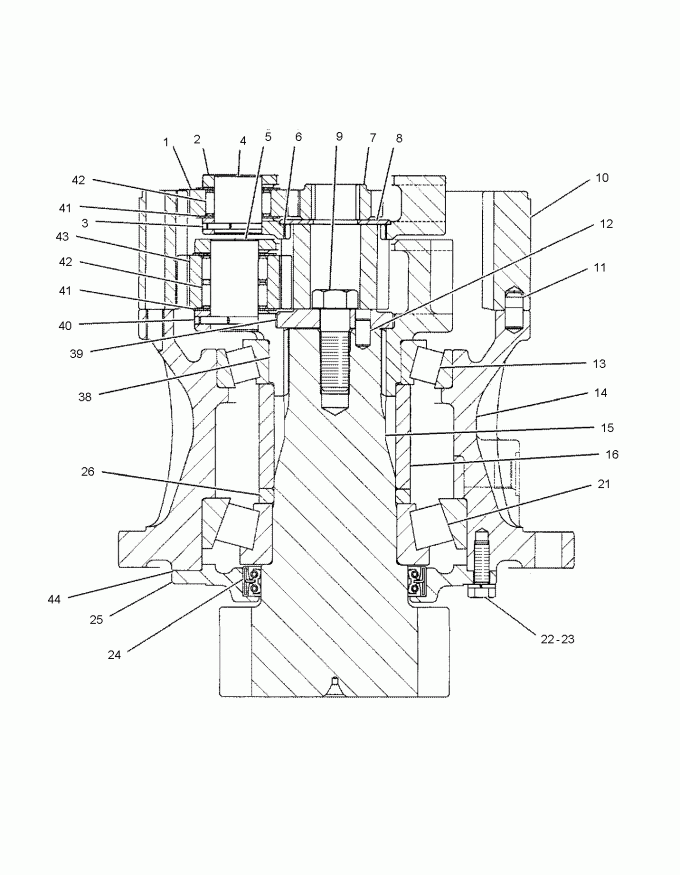

Bagian-bagian untuk EXCAVATOR 312C Anda:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 191-2600 | [3] | Gear-planetary | |
| 2. | 191-2599 | [1] | Pembawa-Planetary | |
| 3. | 191-2604 | [3] | Pin-SPRING | |
| 4. | 191-2603 | [3] | SHAFT-PLANETARY | |
| 5. | 191-2609 | [3] | SHAFT-PLANETARY | |
| 6. | 191-2605 | [1] | PEMANAS(30X75X3-MM THK) | |
| 7. | 191-2611 | [1] | Gear-SUN | |
| 8. | 191-2612 | [1] | Gear-SUN | |
| 9. | 114-8224M | [1] | BOLT(M20X1.5-THD) | |
| 10. | 191-2613 | [1] | GANG-RING | |
| 11. | 093-6089 | [2] | Dowell | |
| 12. | 095-0893 | [1] | Pin-SPRING | |
| 13. | 7I-7625 | [1] | Bantalan AS-roller | |
| 14. | 191-2615 | [1] | Perumahan | |
| 15. | 191-2614 | [1] | SHAFT-PINION | |
| 16. | 7I-7632B | [1] | SPACER(69,5-MM THK) | |
| 7I-7633B | [1] | SPACER(69,8-MM THK) | ||
| 7I-7634B | [1] | SPACER(70.1-MM THK) | ||
| 7I-7635B | [1] | SPACER(70.4-MM THK) | ||
| 7I-7636B | [1] | SPACER(70.7-MM THK) | ||
| 21. | 7I-7626 | [1] | Bantalan AS-roller | |
| 22. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 23. | 8T-4121 | [8] | Hard untuk mencuci(11X21X2.5-MM THK) | |
| 24. | 099-0233 | [1] | TIPU SEAL-LIP | |
| 25. | 099-0235 | [1] | KAU | |
| 26. | 7I-7638B | [1] | SPACER(10-MM THK) | |
| 7I-7639B | [1] | SPACER(10,03-MM THK) | ||
| 7I-7640B | [1] | SPACER(10,05-MM THK) | ||
| 7I-7641B | [1] | SPACER(10.08-MM THK) | ||
| 7I-7642B | [1] | SPACER(10,1-MM THK) | ||
| 7I-7643B | [1] | SPACER(10,12-MM THK) | ||
| 7I-7644B | [1] | SPACER(10,15-MM THK) | ||
| 7I-7645B | [1] | SPACER(10,18-MM THK) | ||
| 7I-7646B | [1] | SPACER(10,2-MM THK) | ||
| 7I-7647B | [1] | SPACER(10,23-MM THK) | ||
| 7I-7648B | [1] | SPACER(10,25-MM THK) | ||
| 7I-7649B | [1] | SPACER(10,28-MM THK) | ||
| 38. | 191-2607 | [1] | Pembawa-Planetary | |
| 39. | 114-8223 | [1] | Pengendali | |
| 40. | 191-2610 | [3] | Pin-SPRING | |
| 41. | 191-2602 | [12] | PEMANAS(32X56X1.2-MM THK) | |
| 42. | 191-2601 | [9] | Keterangan: | |
| 43. | 191-2608 | [3] | Gear-planetary | |
| 44. | 1U-8846B | SEALANT-GASKET |
