Informasi Detail |
|||
| Menyoroti: | Gearbox Ayunan Excavator,Perlengkapan Pengurang Ayunan,Swing Drive Gearbox |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk

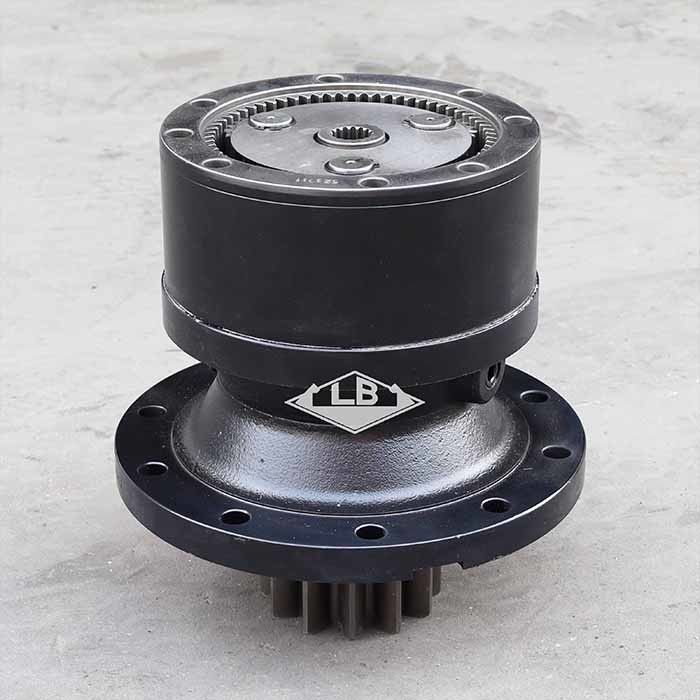

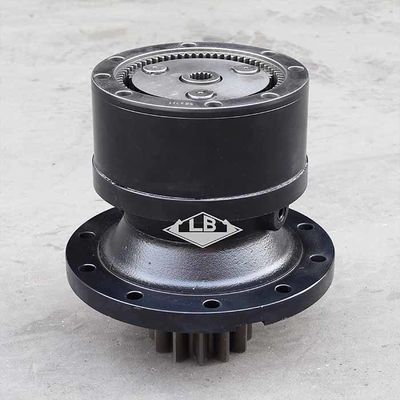

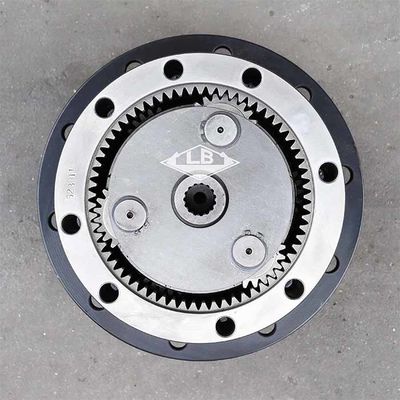

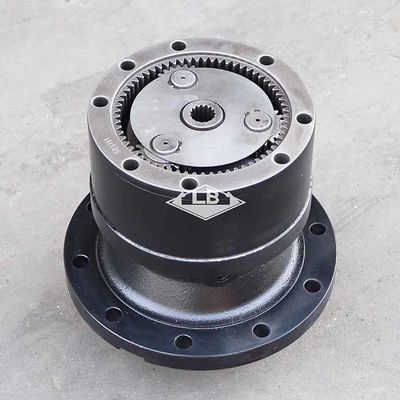

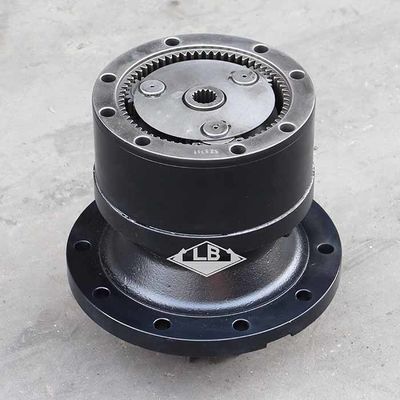

| Pnama seni | EX60-5 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 4398053 | |||||
| NO.1 gigi spline gear matahari | 15splines | |||||
| Gigi poros swing pinion | 12T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 80 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada GRUP TRANSMISION:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 4398053 | [1] | T.MISI | 4398053 | |
| 01. | M341403 | [8] | BOLT;SOCKET | |
| 02. | 4397235 | [1] | PELAT | |
| 03. | 4397236 | [1] | Gear;SUN | |
| 04. | 4397246 | [1] | Pengangkut | |
| 05. | 4397237 | [1] | Gear;SUN | |
| 06. | 4397238 | [1] | PLATE;THRUST | |
| 07. | 4397239 | [1] | Pengangkut | |
| 09. | 4397240 | [1] | NUT | |
| 10. | 4397241 | [1] | BRG.; ROL. | |
| 11. | 4395197 | [1] | SEAL; Minyak | |
| 14. | 4397242 | [1] | BRG.; ROL. | |
| 18. | 4397244 | [3] | Gear;Planetary | |
| 19. | 4397245 | [3] | BRG.; jarum | |
| 22. | 4397247 | [1] | Gear;RING | |
| 23. | 4397248 | [3] | Gear;Planetary | |
| 24. | 4267081 | [3] | PLATE;THRUST | |
| 25. | 4134502 | [3] | PIN;SPRING | |
| 26. | 4397249 | [3] | PIN | |
| 27. | 4397250 | [1] | pipa; drainase | |
| 28. | 94-2012 | [1] | PLUG | |
| 29. | 94-2010 | [2] | PLUG | |
| 30. | 4397251 | [1] | Perumahan | |
| 31. | 4397252 | [1] | SEAL; debu | |
| 32. | 4397253 | [1] | Panduan | |
| 33. | 4397254 | [1] | SHAFT;PROP. | |
| 34. | 942517 | [3] | RING;RETENING | |
| 35. | 4397255 | [1] | PELUAR | |
| 115. | 4397243 | [1] | PDB | |
| 116. | 4255227 | [1] | PIPE | |
| 300. | 4397256 | [1] | Perangkat Swing (tanpa motor) |
