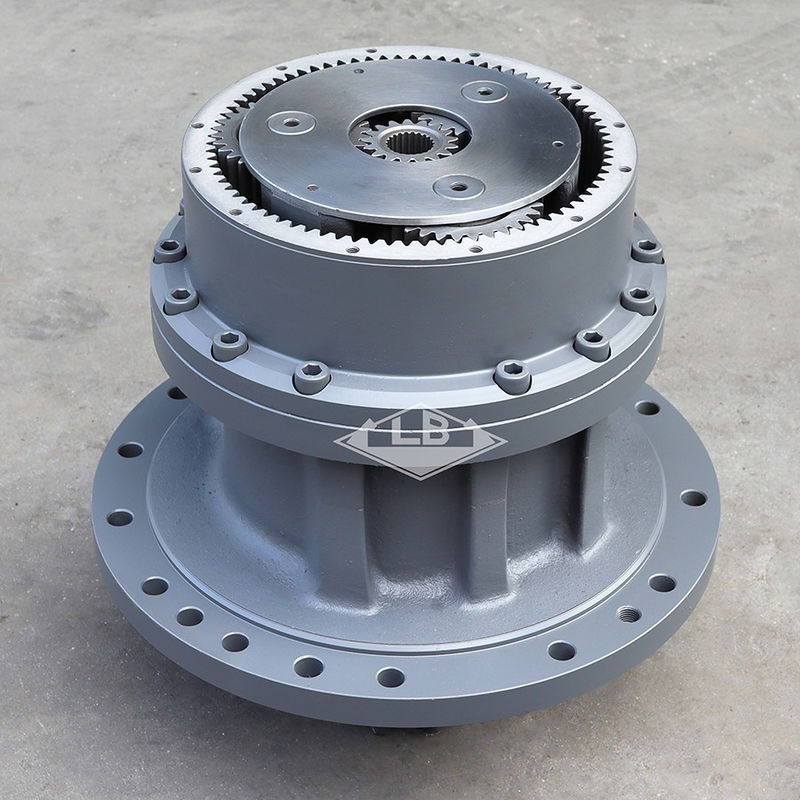

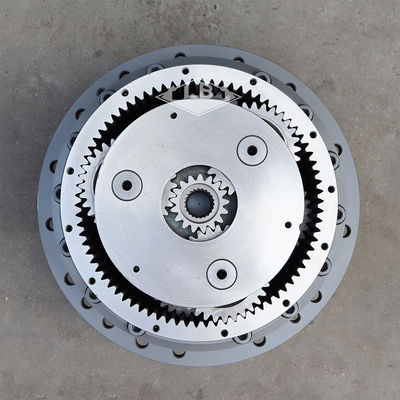

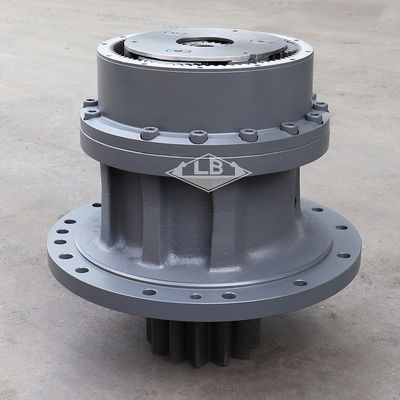

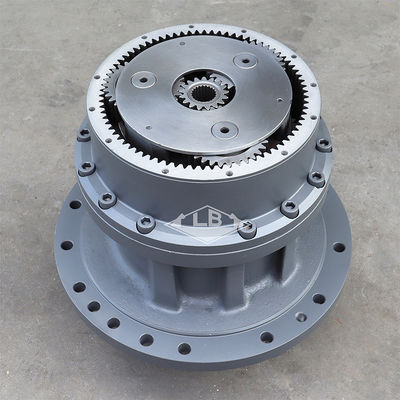

HX300 R290LC-7 R290LC-9 R300LC-9 GEAR PENGURANGAN SWING 39QB-12101 38K8-10150 38K8-11100 R300-9 SWING GEARBOX
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | HX300 R290LC-7 R290LC-9 R300LC-9 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 39QB-12101 | |||||
| NO.1 gigi spline gear matahari | 22 spline | |||||
| Gigi poros swing pinion | 15 T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada GAR REDUCTION SWING GROUP:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| *-2. | 39Q8-12101 | [1] | Gear pengurangan ayunan | SEE 4100 |
| 1. | 39Q8-12110 | [1] | RING GEAR | |
| 2. | 39Q8-12120 | [1] | SHAFT-DRIVE | |
| 3. | 39Q8-12130 | [1] | Berkas-SPH.roller | Utama |
| 4. | 39Q8-12140 | [1] | Berkas-SPH.roller | SUB |
| 5. | 39Q8-12150 | [1] | Plate-thrust | |
| 6. | 39Q8-12160 | [1] | RING-SNAP | |
| 7. | 39Q8-12170 | [1] | PELUAR | |
| 8. | S017-120306 | [12] | BOLT-HEX | |
| 9. | 39Q8-12180 | [1] | KASING | |
| 10. | S632-290001 | [1] | O-RING | |
| 11. | S109-100306 | [12] | BOLT-SOCKET | |
| K12. | 39Q8-12201 | [1] | Pengangkut No.2 | |
| K13. | 39Q8-12211 | [4] | Gear-Planetary NO.2 | |
| K14. | 39Q8-12220 | [4] | Jarum bantalan NO.2 | |
| K15. | 39Q8-12231 | [8] | No. pencetakan cuci.2 | |
| K16. | 39Q8-12240 | [4] | Pembawa PIN NO.2 | |
| K17. | S472-910404 | [4] | Pin-SPRING | |
| K18. | 39Q8-12251 | [1] | Gear-SUN NO.2 | |
| K19. | 39Q8-12261 | [1] | PEMBANGUNAN PLAT NO.2 | |
| K20. | 39Q8-12281 | [1] | Pengangkut No.1 | |
| K21. | 39Q8-12291 | [3] | Gear-Planetary NO.1 | |
| K22. | 39Q8-12300 | [3] | Jarum bantalan NO.1 | |
| K23. | 39Q8-12311 | [6] | No. pencetakan cuci.1 | |
| K24. | 39Q8-12320 | [3] | Pembawa PIN NO.1 | |
| K25. | S472-800404 | [3] | PIN-SPRING NO.1 | |
| K26. | 39Q8-12331 | [1] | Gear-SUN NO.1 | |
| K27. | 39Q8-12341 | [1] | PEMBANGUNAN PLAT NO.1 | |
| 28. | 39Q8-12350 | [1] | Sleeve | |
| 29. | S632-140001 | [1] | O-RING | |
| 30. | 39Q6-12350 | [1] | SEAL-OIL | |
| 31. | 39Q6-41450 | [2] | PIN-PARALEL | |
| 32. | S109-18050D | [14] | BOLT-SOCKET | |
| 33. | 39Q8-12361 | [1] | NAME PLATE (Plat Nama) | |
| 34. | 39Q6-41800 | [2] | RIVET | |
| 35. | P220-430204 | [1] | PLUG-HEX | |
| K. | 39Q8-12270 | [1] | Pengangkut ASSY KIT 1 | Lihat ILLUST |
| K. | 39Q8-12190 | [1] | Pengangkut ASSY KIT 2 |
