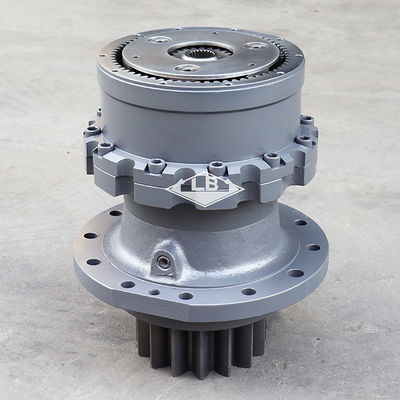

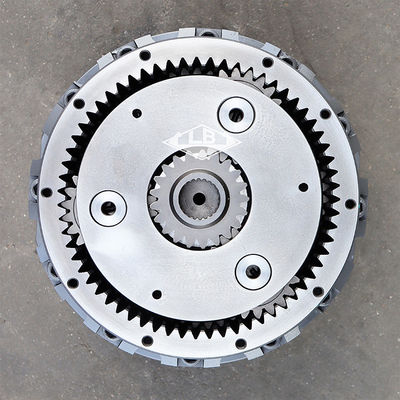

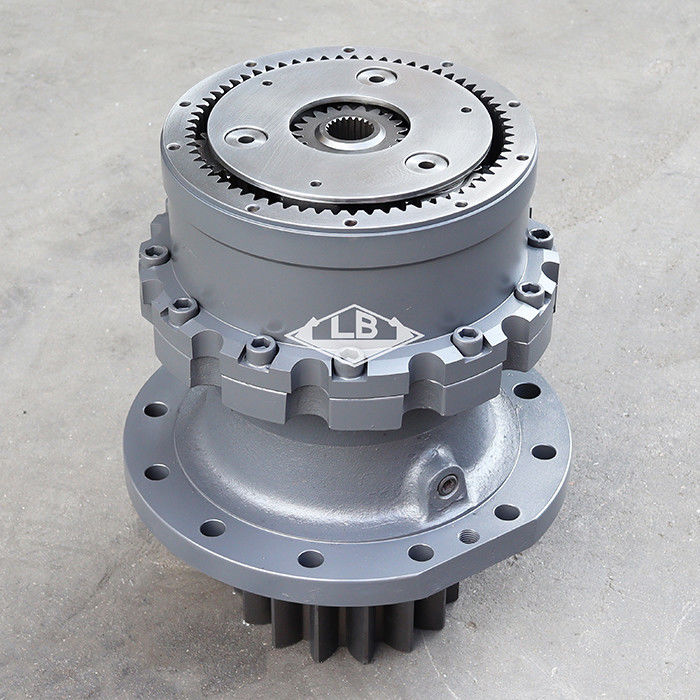

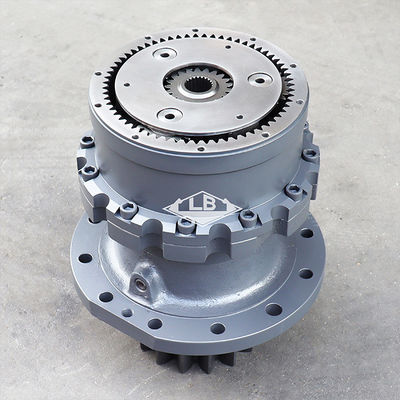

R480LC-9 R520LC-9 GEAR PENGURANGAN SWING 39QB-12100 39QB-12101 39QB-12102 R480-9 SWING GEARBOX
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | R480LC-9 R520LC-9 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 39QB-12100 39QB-12101 | |||||
| NO.1 gigi spline gear matahari | 22 spline | |||||
| Gigi poros swing pinion | 15 T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada GANG REDUCTION SWING GROUP (TYPE 2):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| *-2. | 39QB-12100 | [1] | Gear pengurangan ayunan | |
| *-2. | 39QB-12101 | [1] | Gear pengurangan ayunan | |
| *-2. | 39QB-12102 | [1] | Gear pengurangan ayunan | |
| 1. | 39QB-12110 | [1] | GANG-RING | |
| 2. | 39QB-12120 | [1] | SHAFT-DRIVE | |
| 3. | 39Q6-12130 | [1] | TAPER BEARING.MAIN | |
| 4. | 39Q6-12140 | [1] | Taper bantalan | |
| 5. | 39Q6-12150 | [1] | NUT-RING | |
| 6. | 39QB-12160 | [1] | Plat-lock, NUT ring | |
| 7. | S017-120166 | [4] | BOLT-HEX | |
| 8. | 39QB-12170 | [1] | KASING | |
| 8. | 39QB-12171 | [1] | KASING | |
| 9. | S109-100306 | [10] | BOLT-SOCKET | |
| K10. | 39QB-12190 | [1] | Pengangkut 2 | |
| K11. | 39QB-12200 | [4] | Gear-Planetary 2 | |
| K12. | 39QB-12210 | [8] | Jaring-jarum 2 | |
| K13. | 39QB-12220 | [8] | WASHER-THRUST 2 | |
| K14. | 39QB-12230 | [4] | Pembawa PIN 2 | |
| K15. | S472-800364 | [4] | Pin-SPRING | |
| K16. | 39QB-12240 | [1] | Gear-SUN 2 | |
| K17. | 39QB-12260 | [1] | Pengangkut 1 | |
| K18. | 39QB-12270 | [3] | Gear-Planetary 1 | |
| K19. | 39Q6-12280 | [3] | Jarum bantalan 1 | |
| K20. | 39Q6-12290 | [3] | WASHER-THRUST 1, UP | |
| K21. | 39Q6-12300 | [3] | WASHER-THRUST 1, rendah | |
| K22. | 39Q6-12310 | [3] | PIN-CARRIER 1 | |
| K23. | S472-600324 | [3] | Pin-SPRING | |
| K24. | 39QB-12320 | [1] | Gear-SUN 1 | |
| K25. | 39QB-12330 | [2] | Plate-thrust | |
| 26. | 39Q6-12340 | [1] | Sleeve | |
| 27. | S632-120001 | [1] | O-RING | |
| 28. | 39Q6-12350 | [1] | SEAL-OIL | |
| 29. | 39Q6-41450 | [2] | PIN-PARALEL | |
| 30. | S109-16045D | [12] | BOLT-SOCKET | |
| 31. | 39QB-12360 | [1] | NAME PLATE (Plat Nama) | |
| 31. | 39QB-12361 | [1] | NAME PLATE (Plat Nama) | |
| 31. | 39QB-12362 | [1] | NAME PLATE (Plat Nama) | |
| 32. | 39Q6-41800 | [2] | RIVET | |
| 33. | P220-430204 | [1] | PLUG-HEX | |
| K. | 39QB-12250 | [1] | Pengangkut ASSY KIT 1 | Lihat ILLUST |
| K. | 39QB-12180 | [1] | Pengangkut ASSY KIT 2 | Lihat ILLUST |
