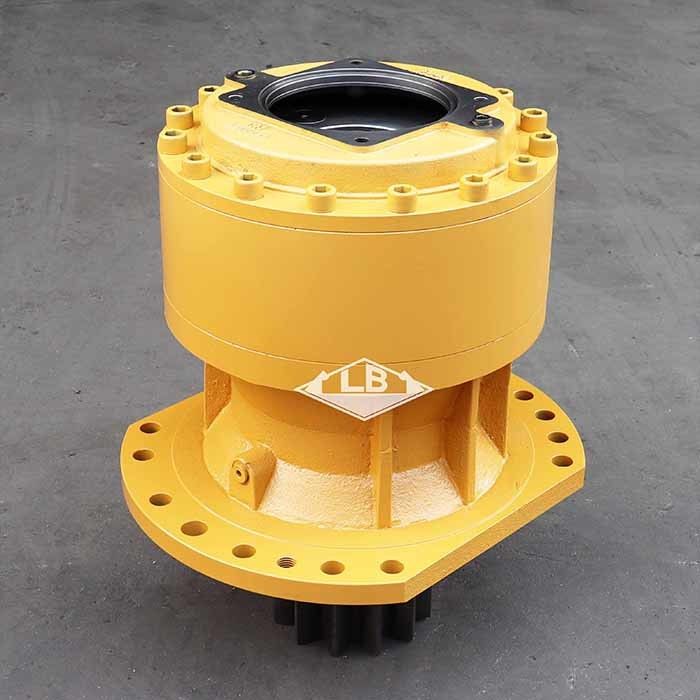

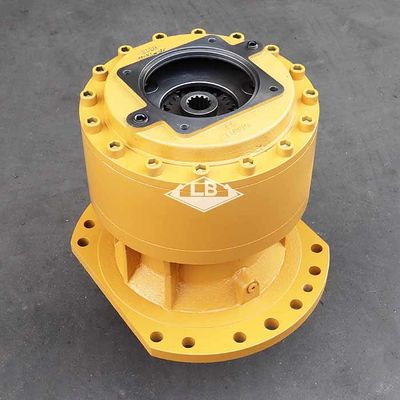

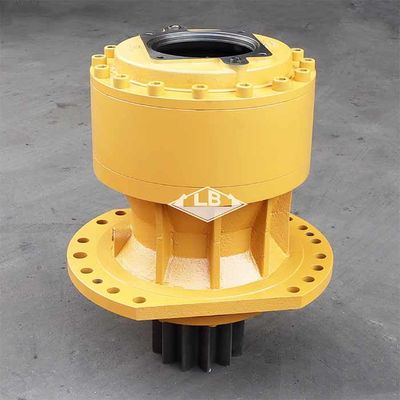

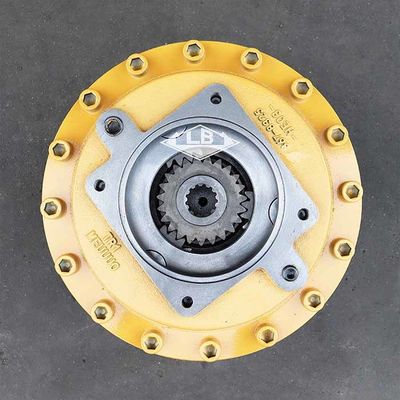

Gearbox ayun E 374F 374D 378-9543 378-9544 3789543 3789544 Gearbox ayun E 374
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 374 Gearbox berayun | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 378-9543 378-9544 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 12T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| 378-9543: DRIVE GP-SWING | |||
| Posisi. | Bagian No. | Qty | Nama bagian |
| 1 | 7Y-0225 | [3] | SHAFT-PLANETARY |
| 2 | 094-0574 | [1] | Pengendalian cincin |
| 3 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) |
| 4 | 110-7053 | [3] | Gear-planetary (23-tooth) |
| 5 | 136-2889 | [1] | Gear-SUN (23-TEETH) |
| 6 | 136-2891 | [1] | Pembawa-Planetary |
| 7 | 136-2893 | [1] | SPACER-SPECIAL |
| 8 | 136-2894 | [1] | Perumahan |
| 9 | 136-2896 | [1] | RING-GEAR (70-TEETH) |
| 10 | 136-2897 | [1] | Gear-SUN (22-TEETH) |
| 11 | 136-2898 | [8] | WASHER (58.3X89X1-MM THK) |
| 12 | 136-2899 | [4] | SHAFT-PLANETARY |
| 13 | 136-2901 | [4] | Gear-planetary (23-tooth) |
| 14 | 136-2941 | [1] | KAU |
| 15 | 227-6221 | [1] | BREATHER AS (Swing Drive) |
| 4H-6112 | [1] | BREATHER (Swing Drive) | |
| 227-6215 | [1] | BOSS (1/4-18-THD) | |
| 267-6785 | [1] | PIPE | |
| 16 | 267-6914 | [1] | SHAFT-PINION |
| 17 | 296-6229 | [1] | Pembawa-Planetary |
| 18 | 367-8323 | [1] | PIPE-GAUGE |
| 19 | 367-8324 | [1] | Pengukur-tingkat minyak |
| 20 | 367-8325 | [1] | Rumah atap |
| 21 | 093-1730 | [1] | Pengendalian cincin |
| 22 | 093-1731 | [1] | Pengendalian cincin |
| 23 | 509-6676 | [3] | Pin-SPRING |
| 24 | 096-2653 | [1] | Pengendalian cincin |
| 25 | 510-1989 | [4] | Pin-SPRING |
| 26 | 135-9044 | [2] | TIPU SEAL-LIP |
| 27 | 136-2904 | [1] | Keterangan: |
| 28 | 136-2940 | [1] | Keterangan: |
| 29 | 136-2942 | [1] | SEAL-O-RING |
| 30 | 297-6841 | [8] | Berkas-Roller |
| 31 | 3K-0360 | [1] | SEAL-O-RING |
| 32 | 6V-7238 | [1] | VALVE-SHUT-OFF (HYDRAULIC OIL) |
| 33 | 453-2850 M | [16] | BOLT (M20X2.5X200-MM) |
| 34 | 7Y-0252 | [3] | Bantalan AS-roller |
| 35 | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) |
| 36 | 451-2176 | [16] | WASHER-HARD (22X35X3.5-MM THK) |
| 37 | 453-3447 M | [10] | BOLT (M12X1.75X40-MM) |
| 38 | 451-2182 | [10] | WASHER-HARD (13.5X25.5X3-MM THK) |
