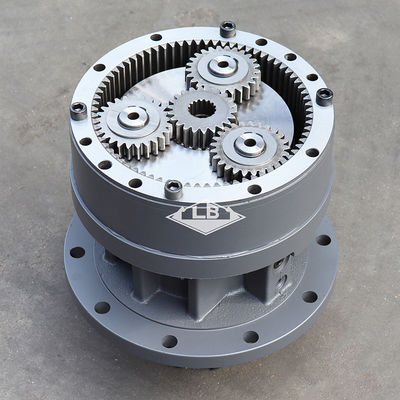

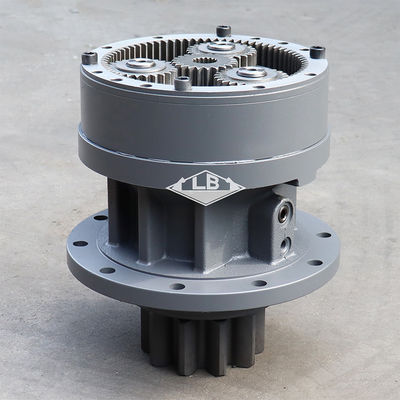

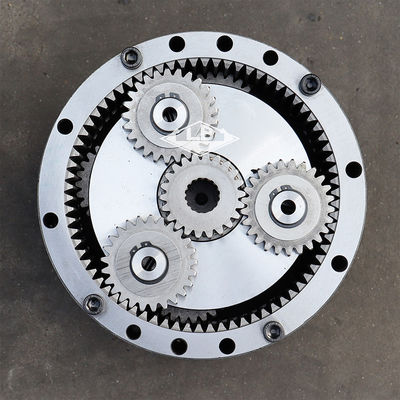

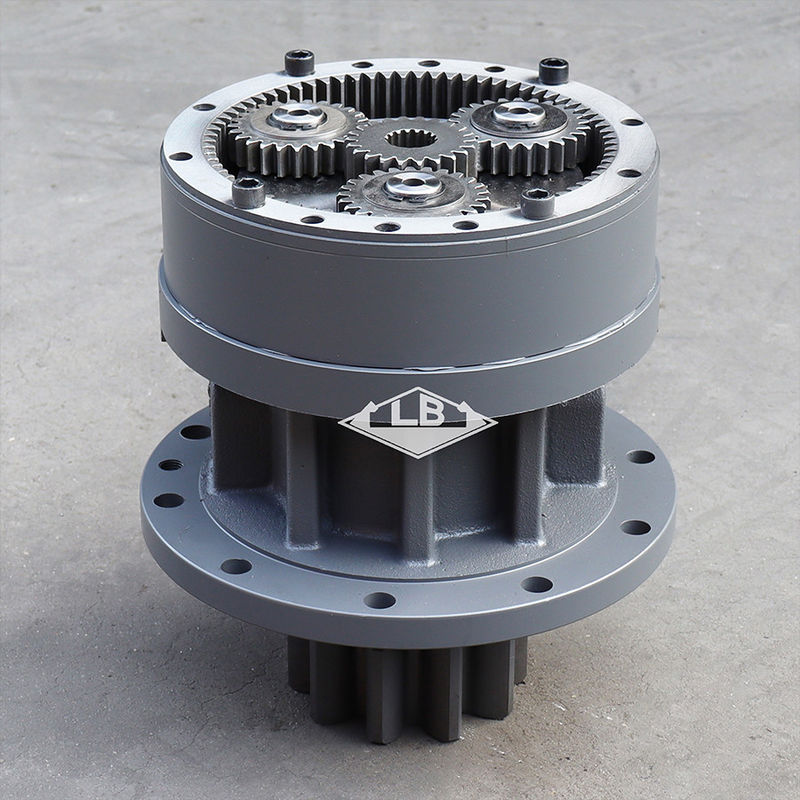

SOLAR130 SOLAR150LC-V DH150 Swing REDUCTION GEAR 2404-1066A 404-00062 SOLAR130 Swing gearbox untuk excavator
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | SOLAR130 SOLAR150LC-V DH150 swing gearbox | |||||
| Peralatan | Berlaku untuk DOOSAN EXKAVATOR | |||||
| Bagian no. | 2404-1066A 404-00062 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 22T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 90 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian dari kelompok SOLAR 150LC-V:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| -. | 2404-1066A | [1] | GANG REDUKSI | |
| -. | 404-00062 | [1] | Gear pengurangan ayunan | |
| 1. | 402-00017 | [1] | KASING | |
| 10. | 123-00094 | [4] | PIN ASS'Y NO.2 | |
| 11. | 123-00095 | [3] | PIN ASS'Y NO.1 | |
| 12. | 2114-1594 | [13] | WASHER;THUST ((B)) | |
| 13. | 2114-1592 | [2] | WASHER;THUST ((A)) | |
| 14. | 119-00003 | [1] | BAR;LEVEL | |
| 15. | 182-00009 | [1] | Pipa;Livel Gauge | |
| 16. | 123-00096 | [2] | PIN;TEKAN | |
| 17. | 2109-1041 | [1] | Bantalan; Roller | |
| 18. | 2109-1042 | [1] | Bantalan; Roller | |
| 19. | S2216873 | [10] | BOLT;SOCKET | |
| 2. | 405-00006 | [1] | SHAFT; DRIVE | |
| 20. | 180-00179 | [1] | SEAL; Minyak | |
| 21. | 2181-1116D4 | [1] | PLUG | |
| 22. | 2181-1116D2 | [2] | PLUG | |
| 23. | S5740890 | [3] | PIN;SPRING | |
| 24. | S6500300 | [4] | RING;RETENER | |
| 25. | S6500650 | [1] | RING;RETENER | |
| 26. | 115-00037 | [1] | RING;NILOS | |
| 27. | S5740900 | [4] | PIN;SPRING | |
| 28. | 191-00167 | [2] | PLATE; SUPPORT | |
| 29. | S3453116 | [6] | Bolt;Screw | |
| 3. | 104-00019 | [1] | Gear;RING | |
| 4. | 404-00063 | [4] | Gear;Planet NO.2 | |
| 5. | 404-00064 | [1] | Gear;SUN NO.2 | |
| 6. | 404-00065 | [3] | Gear;Planet NO.1 | |
| 7. | 404-00066 | [1] | Gear;SUN NO.1 | |
| 8. | 230-00017 | [1] | Pengangkut No.2 | |
| 9. | 230-00018 | [1] | Pengangkut No.1 |
