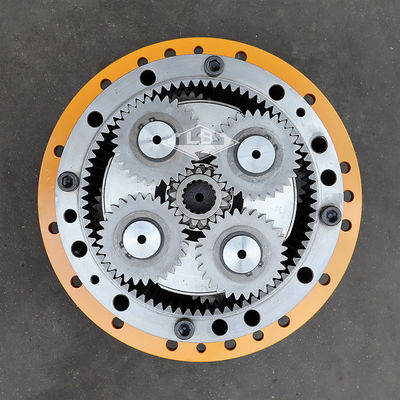

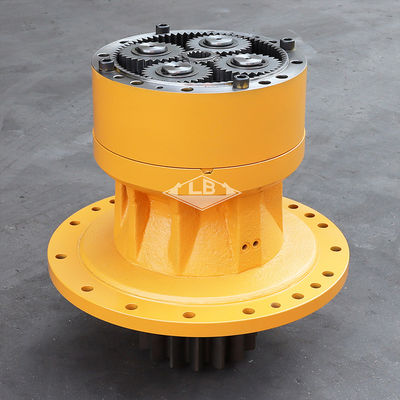

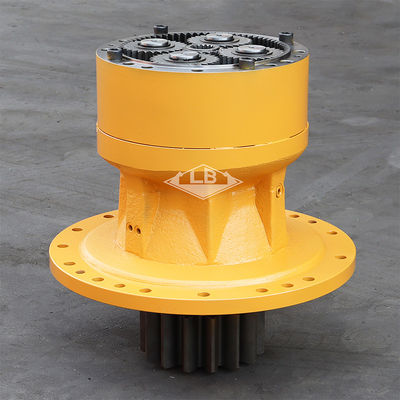

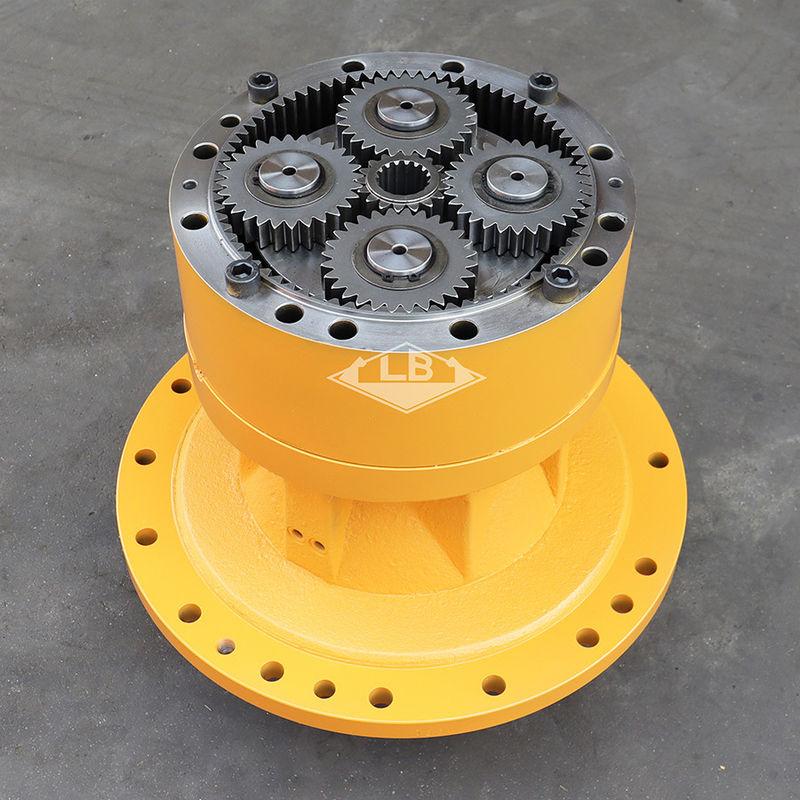

Bagian excavator R320LC-7 R335-7 Swing reduction gear 31N9-10180 31N9-10181 R320LC-7 swing gearbox untuk excavator
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | R320LC-7 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 31N9-10180 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 345 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok SWING REDUCTION GEAR ((TYPE 1, #0479-):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| *-2. | 31N9-10180 | [1] | Gear pengurangan ayunan | |
| *-2. | 31N9-10181 | [1] | Gear pengurangan ayunan | |
| 1. | XKAQ-00427 | [1] | KASING | |
| 2. | XKAQ-00428 | [1] | SHAFT-DRIVE | |
| 2. | XKAQ-00759 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00117 | [1] | Berkas-Roller | |
| 4. | XKAQ-00119 | [1] | SEAL-OIL | |
| 5. | XKAQ-00120 | [1] | Berkas-Roller | |
| 6. | XKAQ-00429 | [1] | Pengangkut ASSY-2 | |
| 7. | XKAQ-00430 | [1] | Pengangkut-2 | |
| 8. | XKAQ-00431 | [4] | GEAR-PLANET-2 | |
| 9. | XKAQ-00432 | [4] | PIN ASSY-2 | |
| N10. | XKAQ-00433 | [1] | PIN-2 | |
| N11. | XKAQ-00434 | [1] | BUSHING-2 | |
| 12. | XKAQ-00435 | [8] | Kekuatan pencuci | |
| 13. | XKAQ-00050 | [4] | Pin-SPRING | |
| 14. | XKAQ-00436 | [1] | Gear-SUN-2 | |
| 15. | XKAQ-00437 | [1] | Pengangkut ASSY-1 | |
| 16. | XKAQ-00438 | [1] | Pengangkut-1 | |
| 17. | XKAQ-00439 | [4] | GEAR-PLANET-1 | |
| 18. | XKAQ-00440 | [4] | PIN ASSY 1 | |
| N19. | XKAQ-00441 | [1] | PIN 1 | |
| N20. | XKAQ-00079 | [1] | BUSHING 1 | |
| 21. | XKAQ-00417 | [4] | Plat 1 sisi | |
| 22. | XKAQ-00416 | [4] | Plat 2 sisi | |
| 23. | XKAQ-00041 | [4] | RING-STOP | |
| 24. | XKAQ-00048 | [4] | Pin-SPRING | |
| 25. | XKAQ-00442 | [1] | Gear-SUN-1 | |
| 26. | XKAQ-00444 | [1] | GANG-RING | |
| 27. | XKAQ-00443 | [1] | Plat-COVER | |
| 28. | XKAQ-00445 | [1] | SPACER | |
| 28. | XKAQ-00758 | [1] | SPACER | |
| 29. | XKAQ-00446 | [1] | RING-SPACEER | |
| 30. | XKAQ-00072 | [2] | PIN-KNOCK | |
| 31. | XKAQ-00447 | [1] | PLATE 3-THRUST | |
| 32. | XKAQ-00105 | [1] | Gear-pinion | |
| 33. | XKAQ-00043 | [1] | PLATE-LOCK | |
| 33. | XKAQ-00757 | [1] | PLATE-LOCK | |
| 34. | XKAQ-00064 | [8] | BOLT-HEX | |
| 35. | XKAQ-00042 | [2] | BOLT-HEX | |
| 35. | XKAQ-00756 | [4] | BOLT-HEX | |
| 36. | XKAQ-00292 | [1] | LAMPUNG LAUNCHER | |
| 37. | XKAQ-00448 | [12] | BOLT-SOCKET | |
| 38. | XKAQ-00049 | [1] | PLUG | |
| 39. | XKAQ-00066 | [2] | PLUG | |
| 40. | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 41. | XKAQ-00450 | [1] | BAR-GAGE | |
| 42. | XKAQ-00143 | [1] | Respirator pasca-udara |
