Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk

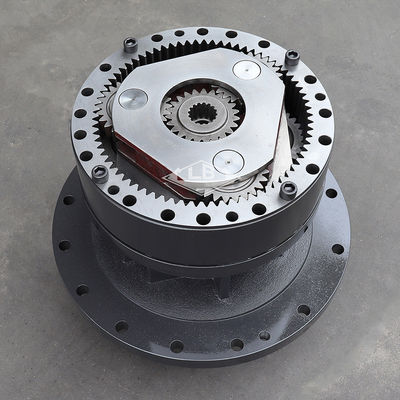

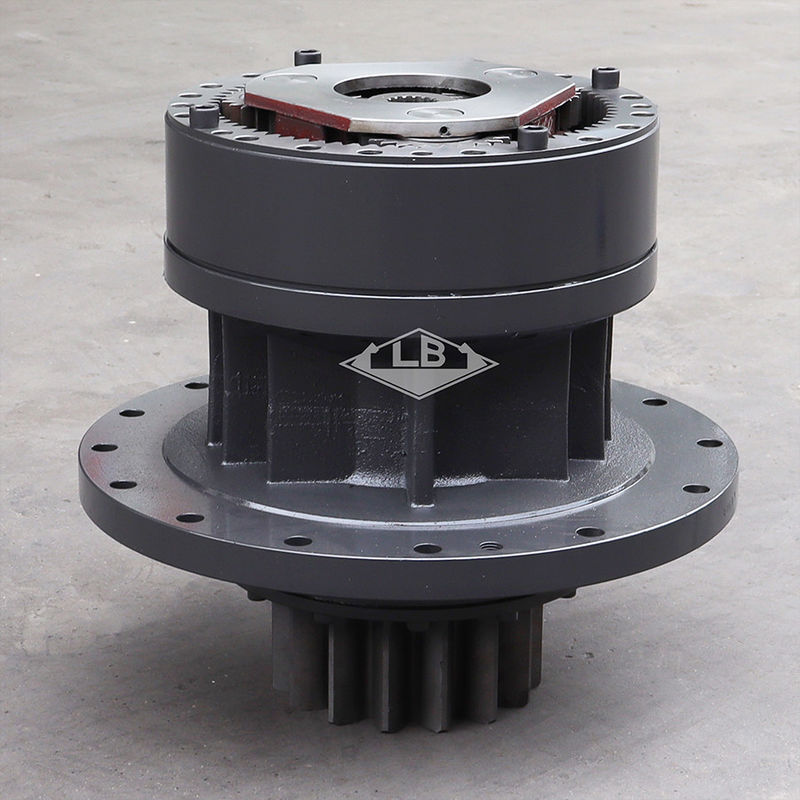

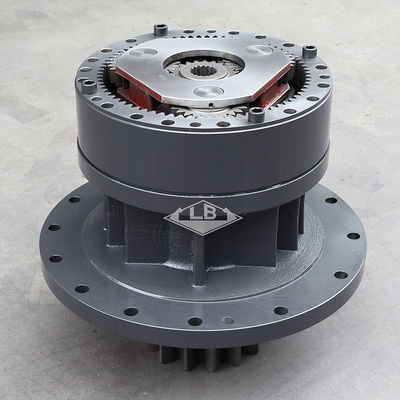

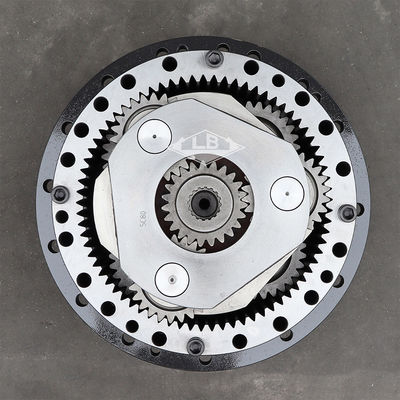

| Pnama seni | Kotak gir swing EC350 | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14640501 VOE14724049 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 330 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14640501 | [1] | Kotak gir swing | S/N -231115, -270378,-280656 | |
| VOE14724049 | [1] | Kotak gir swing | S/N 231116-, 270379-,280657- | |
| 1. | VOE14547262 | [1] | Kasus | |
| 2. | VOE14547260 | [1] | Cincin | |
| 3. | VOE14547259 | [1] | Kerah | |
| 4. | VOE14640502 | [1] | Selang | |
| 5. | VOE14547263 | [1] | Tutup | |
| 6. | VOE14547266 | [1] | Peralatan | |
| 7. | VOE984363 | [20] | Hex. sekrup soket | |
| 8. | VOE944088 | [12] | Pergilah. | |
| 9. | VOE14547261 | [1] | Bantalan | |
| 10. | SA9415-43012 | [1] | Plug | |
| 11. | VOE914167 | [1] | Puting pelumas | |
| 12. | VOE14566830 | [1] | Segel | |
| 13. | VOE14547265 | [1] | Bantalan | |
| 14. | SA9541-01110 | [1] | Cincin penahan | |
| 15. | SA7118-30380 | [1] | Cincin dorong | |
| 16. | VOE14547272 | [1] | Peralatan | |
| 17. | VOE14547278 | [1] | Mesin pencuci dorongan | |
| 18. | VOE14547279 | [1] | Peralatan | |
| 19. | VOE14880960 | [1] | Cincin penahan | |
| 20. | VOE14547281 | [1] | Pipa | |
| 21. | VOE14547280 | [1] | Pembawa planet | |
| 22. | VOE14547267 | [1] | Pembawa planet | |
| 23. | VOE14547271 | [4] | Pin | |
| 24. | VOE14547268 | [4] | Peralatan | |
| 25. | VOE14547269 | [4] | Pembuangan | |
| 26. | VOE14556491 | [8] | Mesin cuci | |
| 27. | SA9325-06012 | [4] | Pin pegas | |
| 28. | VOE14547273 | [1] | Pembawa planet | |
| 29. | VOE14547274 | [1] | Pembawa planet | |
| 30. | VOE14547275 | [3] | Peralatan | |
| 31. | SA7117-30230 | [3] | Pengisi jarum | |
| 32. | VOE14547277 | [3] | Pin | |
| 33. | SA9325-06012 | [3] | Pin pegas | |
| 34. | VOE14547276 | [6] | Mesin cuci | |
| 35. | VOE950677 | [4] | Pin | |
| 36. | VOE949329 | [1] | Gasket | |
| 37. | VOE14722461 | [1] | Katup pembuangan |
