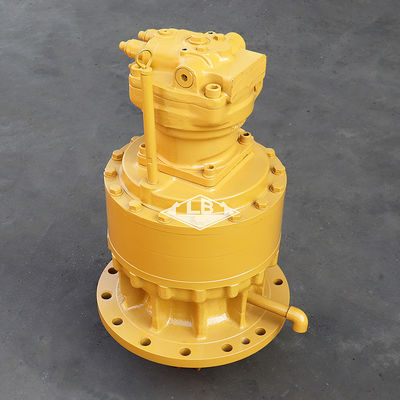

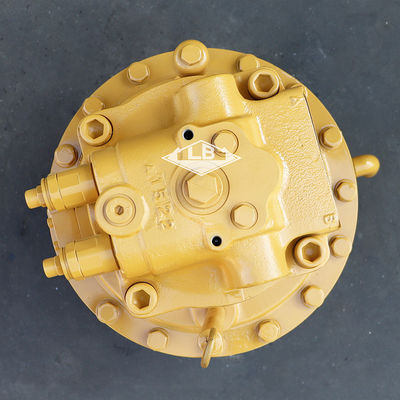

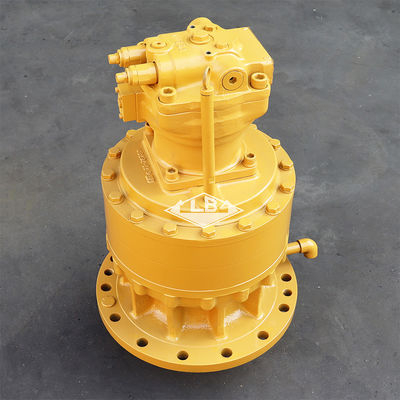

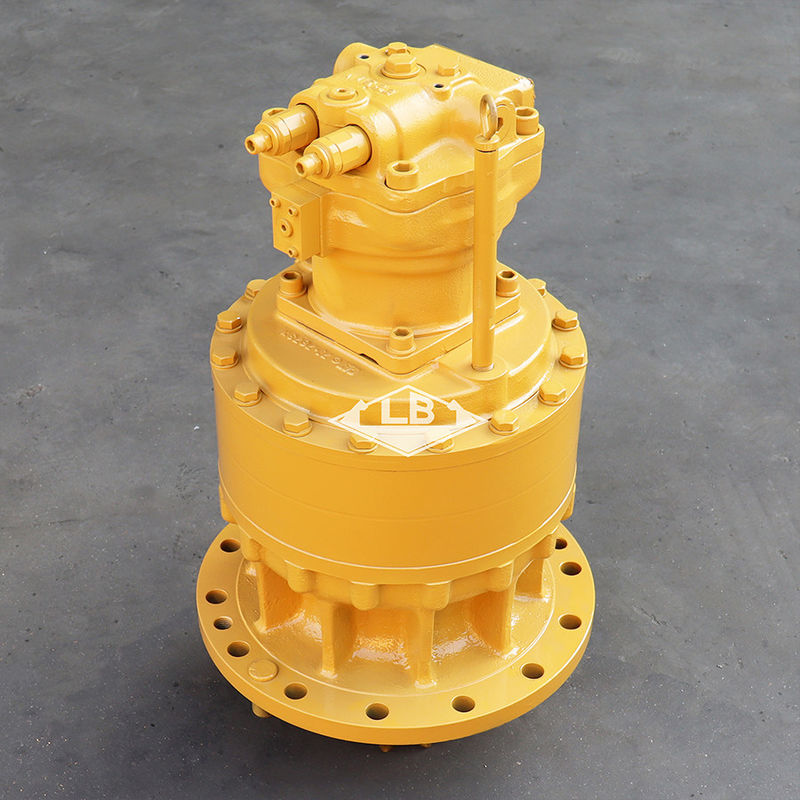

E 325B Swing gearbox dengan motor 110-7214 114-0661 110-7215 E325B Swing Drive
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | E 325B Swing gearbox | |||||
| Peralatan | Berlaku untuk E EXKAVATOR | |||||
| Bagian no. | 110-7214 114-0661 110-7215 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 12T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 094-1509 | [4] | SHAFT | |
| 2. | 114-1401 | [1] | PELUAR | |
| 3. | 093-1731 | [1] | RING | |
| 4. | 093-1730 | [2] | RING | |
| 5. | 7Y-0595 | [1] | SPACER | |
| 6. | 4I-7463 | [1] | Gear(Z=20) | |
| 7. | 4I-7527 | [1] | BREATHER AS | |
| 093-5150 | [1] | Pergaulan | ||
| 114-8234 | [1] | Bernafas | ||
| 159-7665 | [1] | SIPPLE | ||
| 8. | 114-1399 | [1] | PIPE | |
| 9. | 114-1398 | [1] | GAGE | |
| 10. | 7Y-1238 | [1] | Pengangkut | |
| 11. | 8T-6385 | [16] | BOLT(L=180mm) | |
| 12. | 9X-8257 | [16] | PEMANAS | |
| 13. | 1U-8846B | GASKET MAKER(12 ml) | ||
| 14. | 3K-0360 | [1] | SEAL-O-RING(ID=16.36mm) | |
| 15. | 110-7216 | [1] | Gear(Z=24) | |
| 16. | 4I-7467 | [1] | Gear(Z=72) | |
| 17. | 7I-7728 | [1] | Pengangkut | |
| 18. | 096-2653 | [1] | RING | |
| 19. | 114-1402 | [1] | Perumahan | |
| 20. | 8T-4183 | [8] | BOLT(L=40mm) | |
| 21. | 8T-4223 | [8] | Hard untuk mencuci | |
| 22. | 7I-7729 | [1] | SHAFT | |
| 23. | 135-9044 | [2] | SEAL | |
| 24. | 114-1403 | [1] | KAU | |
| 25. | 5P-2235 | [1] | SEAL-O-RING(ID=240.67mm) | |
| 26. | 095-1806 | [1] | Keterangan: | |
| 27. | 7Y-0597 | [1] | SPACER | |
| 28. | 096-4339 | [1] | AS BEARING | |
| 29. | 7Y-1434 | [1] | SPACER | |
| 30. | 114-1383 | [4] | SHAFT | |
| 31. | 094-1528 | [8] | PEMANAS | |
| 32. | 7Y-0339 | [8] | Keterangan: | |
| 33. | 4I-7466 | [4] | Gear(Z=23) | |
| 34. | 095-0891 | [4] | PIN | |
| 35. | 095-0886 | [4] | PIN | |
| 36. | 094-1516 | [4] | Keterangan: | |
| 37. | 4I-7464 | [4] | Gear(Z=25) | |
| 38. | 094-0584 | [8] | PEMANAS | |
| 39. | 6V-7238 | [1] | VALVE(TUTUP) | |
| B | Gunakan sesuai kebutuhan | |||
