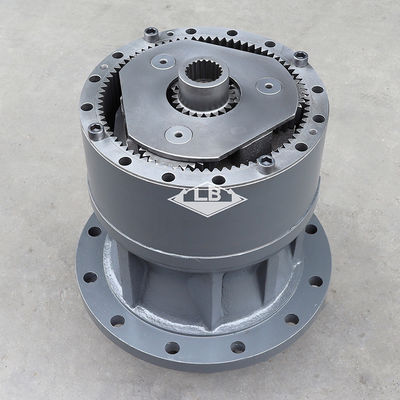

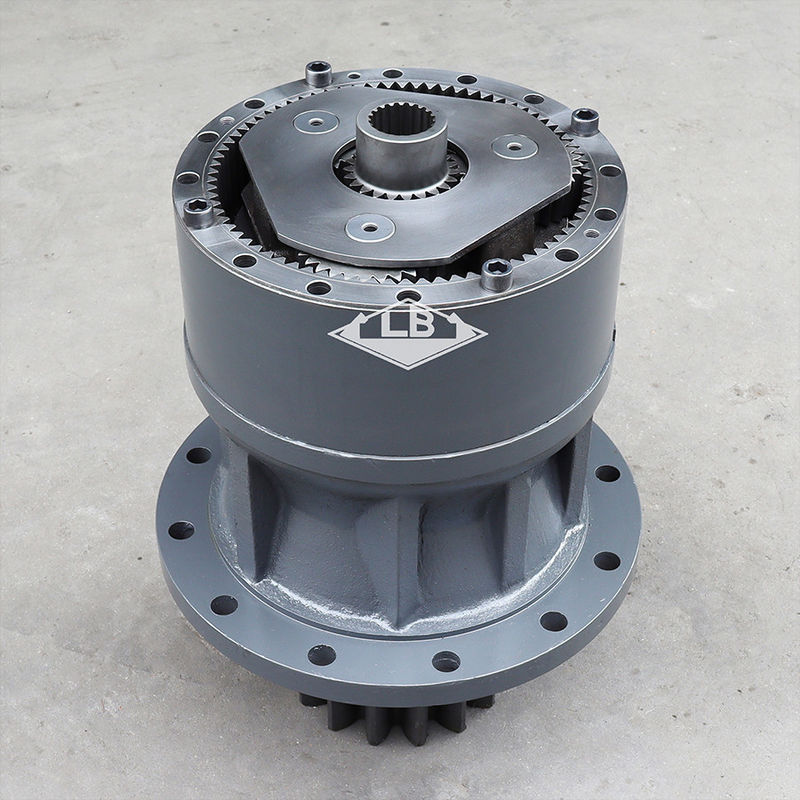

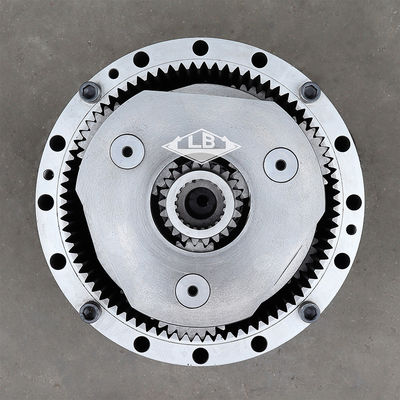

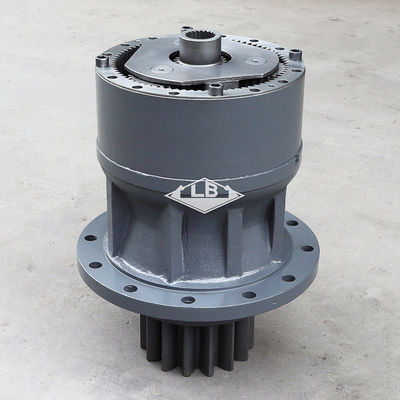

EC380D swing reducer VOE14622901 VOE14680015 EC380 swing gearbox untuk excavator
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | Kotak gir swing EC380 | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14622901 VOE14680015 | |||||
| NO.1 gigi spline gear matahari | 20 spline | |||||
| Gigi poros swing pinion | 15T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 350 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14622901 | [1] | Kotak gir swing | ||
| VOE14680015 | Kotak gir swing | |||
| 1. | VOE14622865 | [1] | Selang | |
| 2. | VOE14622869 | [1] | Kerah | |
| 3. | VOE14622894 | [1] | Bantalan rol | |
| 4. | VOE14622895 | [1] | Piring | |
| 5. | VOE14622896 | [1] | Kerah | |
| 6. | VOE14622897 | [1] | Kasus | |
| 7. | VOE14622898 | [1] | Cincin penahan | |
| 8. | VOE14622899 | [1] | Cincin penahan | |
| 9. | VOE14596611 | [1] | Segel | |
| 10. | VOE14640028 | [1] | Bantalan | |
| 11. | SA9324-21317 | [4] | Pin | |
| 12. | VOE14622914 | [1] | Peralatan | |
| 13. | VOE14622908 | [1] | Pembawa planet | |
| 13A. | VOE14622910 | [4] | Peralatan | |
| 13B. | VOE14622911 | [4] | Pembuangan | |
| 13C. | VOE14622912 | [4] | Pin | |
| 14. | VOE14596618 | [4] | Mesin cuci | |
| 15. | VOE952004 | [4] | Pin pegas | |
| 16. | VOE14622913 | [1] | Peralatan | |
| 17. | VOE14596621 | [1] | Mesin pencuci dorongan | |
| 18. | VOE14622902 | [1] | Pembawa planet | |
| 18A. | VOE14622904 | [0003] | Peralatan | |
| 18B. | VOE14622905 | [3] | Pembuangan | |
| 18C. | VOE14622906 | [3] | Pin | |
| 18D. | VOE14596625 | [0006] | Mesin cuci | |
| 19. | VOE14622907 | [1] | Peralatan | |
| VOE14680062 | Peralatan | |||
| 20. | VOE14596630 | [1] | Tutup | |
| VOE14633289 | Tutup | |||
| 21. | VOE995261 | [16] | Hex. sekrup soket | |
| 22. | SA9415-43052 | [2] | Plug | |
| 23. | SA9415-43012 | [1] | Plug | |
| 24. | VOE914167 | [1] | Puting pelumas | |
| 25. | SA9411-92830 | [2] | Puting siku | |
| 26. | VOE14529015 | [1] | Katup | |
| 27. | VOE914472 | Ring snap | ||
| 28. | VOE984138 | [4] | Hex. sekrup soket | |
| VOE984139 | Hex. sekrup soket |
