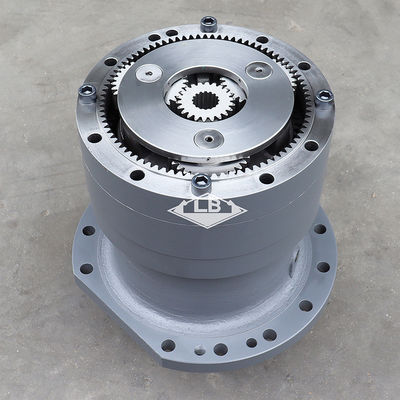

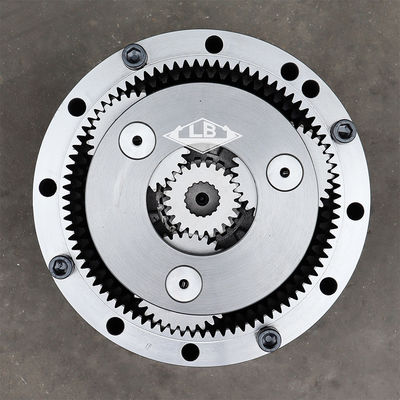

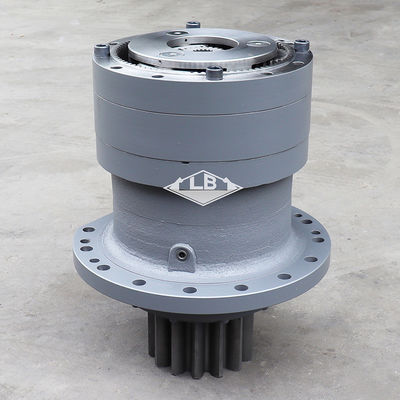

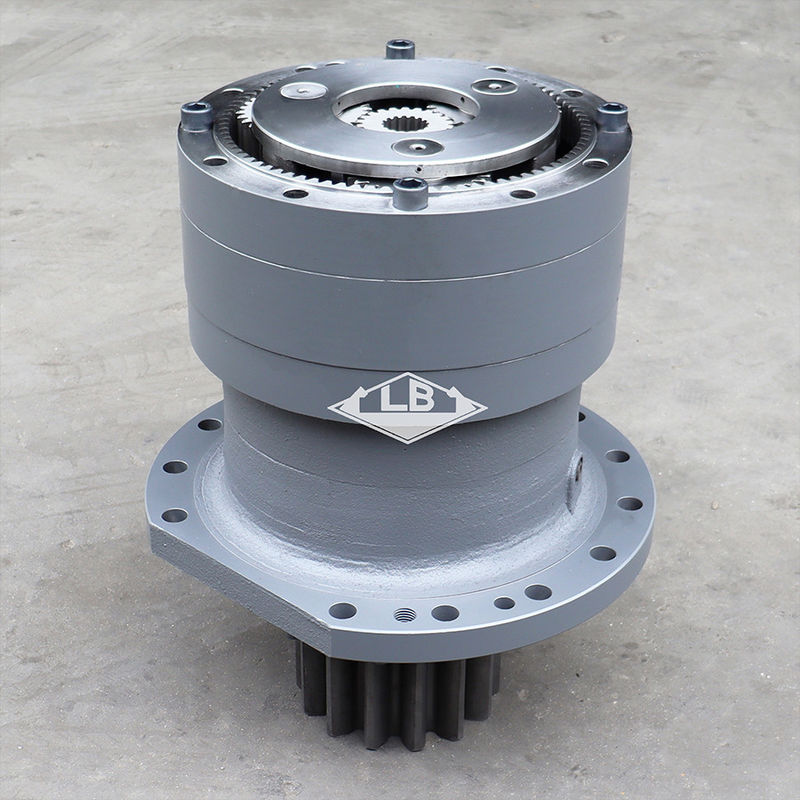

Penggalian ZX850-3 ZX870-3 swing device 9250921 ZX870 swing gearbox
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | ZX850-3 ZX870-3 swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9250921 | |||||
| NO.1 gigi spline gear matahari | 16splines | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | ... | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk

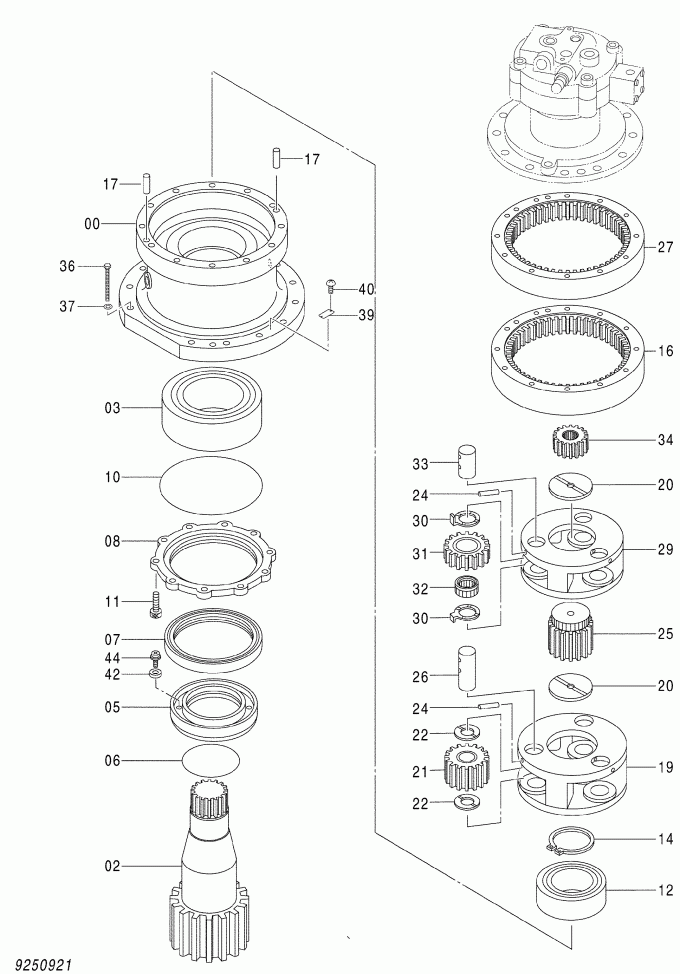

| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9250921 | [1] | T.MISSION (Swing) | ||
| 00. | 1032911 | [1] | Perumahan | |
| 02. | 2036267 | [1] | SHAFT;PROP. | |
| 03. | 4375201 | [1] | BRG.; SPH.ROL. | |
| 05. | 3069880 | [1] | Sleeve | |
| 06. | 4217350 | [1] | O-RING | |
| 07. | 4424982 | [1] | SEAL; Minyak | |
| 08. | 2036875 | [1] | PELUAR | |
| 10. | 4217351 | [1] | O-RING | |
| 11. | M341240 | [10] | BOLT;SOCKET | |
| 12. | 4375200 | [1] | BRG.; SPH.ROL. | |
| 14. | 991354 | [1] | RING;RETENING | |
| 16. | 2052428 | [1] | Gear;internal | |
| 17. | J401640 | [2] | PIN;TEKAN | |
| 19. | 1020438 | [1] | Pengangkut | |
| 20. | 4194454 | [2] | PLATE;THRUST | |
| 21. | 9729474 | [3] | Gear;Planetary | |
| 22. | 4266934 | [6] | PLATE;THRUST | |
| 24. | 986954 | [6] | PIN;SPRING | |
| 25. | 3040887 | [1] | Gear;SUN | |
| 26. | 4368729 | [3] | PIN | |
| 27. | 2052427 | [1] | Gear;internal | |
| 29. | 2036868 | [1] | Pengangkut | |
| 30. | 4338181 | [6] | PLATE;THRUST | |
| 31. | 3069820 | [3] | Gear;Planetary | |
| 32. | 4333265 | [3] | BRG.; jarum | |
| 33. | 4216851 | [3] | PIN | |
| 34. | 3069819 | [1] | Gear;SUN | |
| 36. | J912015 | [12] | BOLT | |
| 37. | A590920 | [12] | PEMANAS;SEMBAH | |
| 39. | +++++++ | [1] | NAME-PLATE | |
| 40. | M492564 | [2] | Screw; Drive | |
| 42. | 4204644 | [4] | Magnet | |
| 44. | J460514 | [4] | Screw;SEMS |
