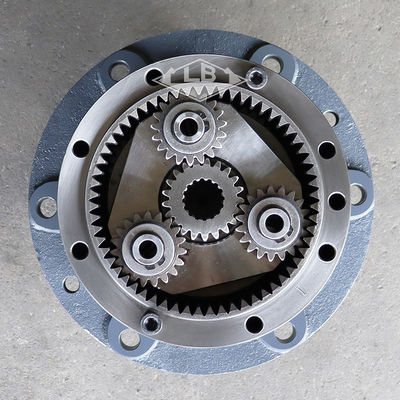

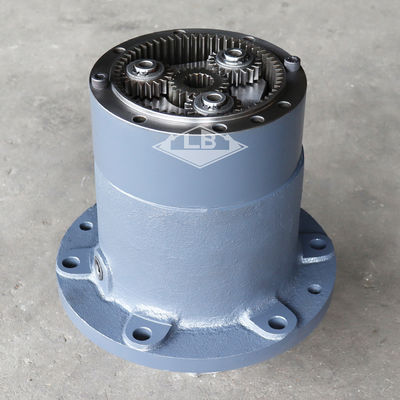

• SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator
  • SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator
  • SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator
  • SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator
SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator

SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator

Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

Swing Gearbox Excavator

,

Swing Motor Gearbox

,

Unit pengurangan ayunan

Deskripsi Produk

Parameter produk
Pnama seni
 SK60-3 swing gearbox
Peralatan Mendaftar ke Kobelco EXKAVATOR
Bagian no. 24100J11943F2 24100J11943F1
NO.1 gigi spline gear matahari 16 spline
Gigi poros swing pinion 10T
Kondisi barang Baru
Logo LB
Berat kotor 60 KG
MOQ 1 pcs
SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator 0 SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator 1
Deskripsi produk

SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 Swing gearbox untuk excavator 2

Posisi. Bagian No. Qty Nama bagian Komentar
. . 24100J11943F1 [1] Motor hidraulik KOBDigantikan oleh nomor bagian: 24100J11943F2
. . 24100J11943F2 [1] Motor KOBSwing
1. 2401N559 [1] Jari pantat. KOB
3. 2418N1914 [1] Pengendali KOB
2. 2418T8471 [1] Sleeve KOB
4. 2414J1304 [1] Perumahan KOB
5. R25P0046D1 [1] ROLLER BEARING KOB
6. 25Z627D9 [1] Keterangan: KOB
7. 2413N460 [1] DIFF. Spider KOB
8. 2413N459F1 [1] Spider KOB
9. 2401N476 [1] RING GEAR KOB
10. 2425Z543 [3] PENGUNJUNG PENGUNJUNG KOB
11. ZS23C10110 [8] Sekrup, Kepala Soket Hex, M10 x 110mm KOBM10x1.50x110mm
12. 2401P1319 [1] PENGANTAR SUN KOB
13. 2425Z544 [4] PENGUNJUNG PENGUNJUNG KOB
14. 2401P1320 [3] PINION KOB
15. 2401P1322 [4] PINION KOB
16. ZD11G07000 [1] O-RING,69.40mm ID x 75.60mm OD x 3.10mm KOBID 69,40 ± 0,61 x OD 75mm
17. ZS23C08025 [8] Sekrup, Kepala Soket Hex, M8 x 25mm KOBM08x1.25x25mm
18. ZD21T10500 [1] OIL SEAL KOBDigantikan dengan nomor bagian: 2418R7D6
19. 2418T8472 [1] SPACER KOB
20. 2418T8473 [2] SPACER KOB
21. 2401P1321 [1] PENGANTAR SUN KOB
22. 2418T20860 [3] cincin penguncian KOB
23. 2418T20857 [6] PENGURUS TEKAN KOB
24. ZR16X05500 [1] RING KOB
25. ZP26D08016 [4] ROLL PIN KOB
26. ZS83C16018 [2] PELUANG KOBM16x2.0x18mm
27. 2418T20856 [8] PENGURUS TEKAN KOB
28. 2410T359 [4] SHAFT KOB
29. 2441U834F1 [1] Motor ASSY, SWING MOTOR, TERAPIK: LE14101-15264, Catatan: (34)   Motor ASSY, SWING MOTOR, TERAPIK: LE14101-15264, Catatan: (34)
29-1. 2436U1431F1 [1] Klep Kontrol KOBVALVE, CONTROL, NOTE: Lihat (C.P.M.) Digantikan dengan nomor bagian: 2436U1431F5
29-2. 2441U814F1 [1] Motor hidraulik KOBMOTOR, Catatan: Lihat (C.P.M.)
29-3. 2436U1283F1 [1] Relay Tekanan Katup KOBVALVE REDUCTION, Catatan: Lihat (C.P.M.)
29-4. ZS23C12135 [6] Sekrup, Kepala Soket Hex, M12 x 135mm KOBM12x1.75x135mm
29-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOBID 34,40 ± 0,33 x OD 40mm
30. 2420T6698D6 [1] PIPE KOB
31. ZE82T12000 [1] PLUG KOB3/4 " PT
32. ZR16X03000 [1] SNAP RING KOB
33. ZG31U12000 [1] Lempung KOB
34. 2441U834F2 [1] MOTOR, DAPAT: LE15265-
34-2. 2441U814F1 [1] Motor hidraulik KOBLihat (C.P.M.)
34-3. 2436U1283F1 [1] Relay Tekanan Katup KOBLihat (C.P.M.)
34-4. ZS23C12135 [6] Sekrup, Kepala Soket Hex, M12 x 135mm KOBM12x1.75x135mm
34-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOBID 34,40 ± 0,33 x OD 40mm
34-6. 2436U1431F2 [1] VALVE, CONTROL SEE ((C.P.M.)   VALVE, CONTROL SEE ((C.P.M.)
. . 24010P3F16 [1] KIT, SHAFT CONSISTENSI dari Item 28   KIT, SHAFT CONSISTENSI dari Item 28
. . 24100J14170F1 [1] Motor hidraulik KOBKonsep dari Item 1 ~ 28, 31, 40, & 41
40. 2418T23617 [1] SPACER
41. 2414T5113 [1] PELUAR
