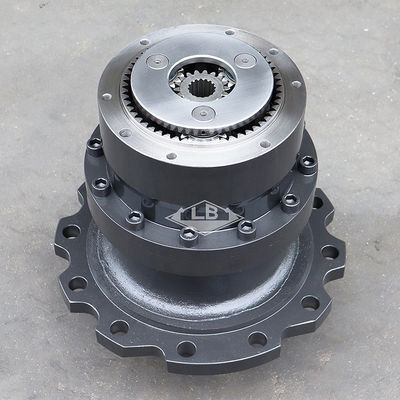

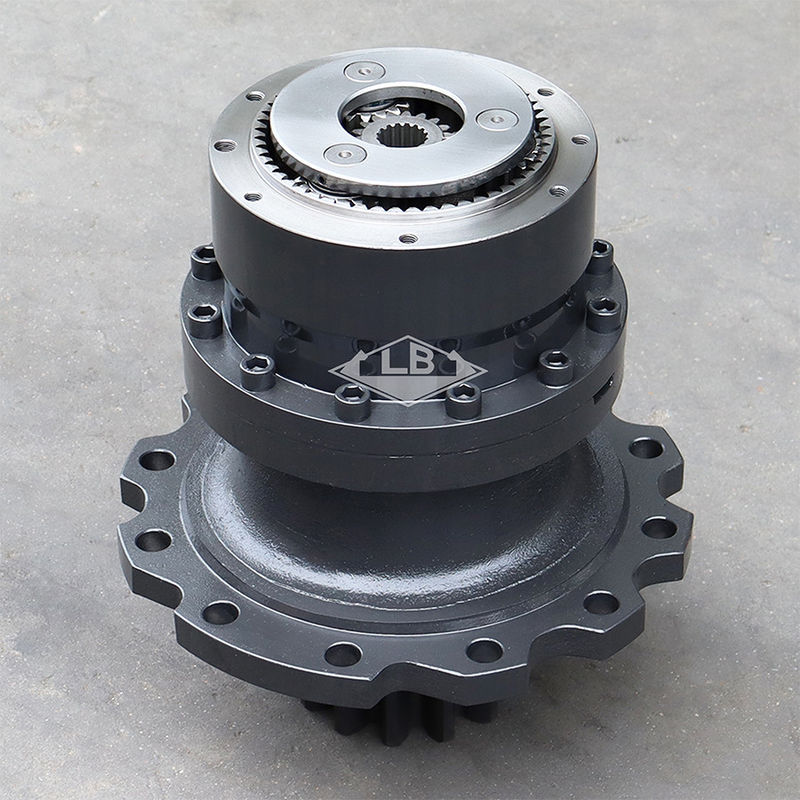

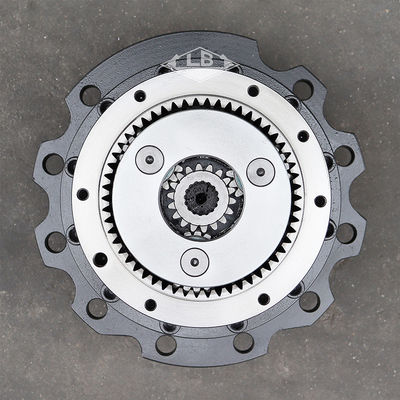

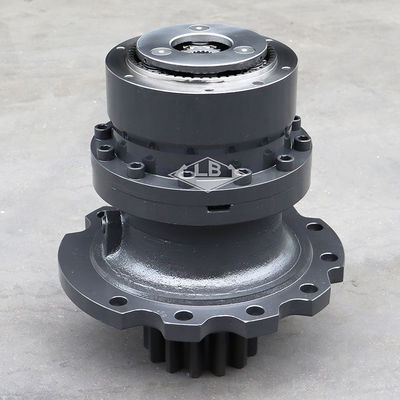

Excavator EX100-5 EX120-5 Swing Device 9148921 EX120-5 swing gearbox untuk excavator
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EX100-5 EX120-5 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9148921 | |||||
| NO.1 gigi spline gear matahari | 16splines | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 110 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
| 2036830 | [1] | SHAFT;PROP. | Y 2028036 | |
| 01. | 2028036 | [1] | SHAFT;PROP. | |
| 02. | 4244693 | [1] | Sleeve | |
| 03. | A811100 | [1] | O-RING | |
| 04. | 4248609 | [1] | BRG.; SPH.ROL. | |
| 06. | 4244691 | [1] | SEAL; Minyak | Y 4424512 |
| 06. | 4424512 | [1] | SEAL; Minyak | |
| 07. | 4247567 | [1] | O-RING | |
| 08. | 3058620 | [1] | PELUAR | |
| 09. | 1020380 | [1] | Perumahan | |
| 11. | J011035 | [8] | BOLT;SEMS | |
| 12. | 4293424 | [1] | BRG.; SPH.ROL. | |
| 13. | 991350 | [1] | RING;RETENING | |
| 14. | 2036804 | [1] | Pengangkut | |
| 16. | 4258089 | [1] | PLATE;THRUST | |
| 17. | 9742788 | [3] | Gear;Planetary | |
| 18. | 4266255 | [6] | PLATE;THRUST | |
| 19. | 4337638 | [3] | PIN | |
| 21. | 4116308 | [6] | PIN;SPRING | |
| 22. | 2036811 | [1] | Gear;RING | |
| 23. | M341440 | [12] | BOLT;SOCKET | |
| 24. | 3069697 | [1] | Gear;SUN | |
| 25. | 3069725 | [3] | Gear;Planetary | |
| 26. | 2036832 | [1] | Pengangkut | |
| 27. | 4176070 | [1] | PLATE;THRUST | |
| 29. | 4269480 | [6] | PLATE;THRUST | |
| 30. | 4330377 | [3] | BRG.; jarum | |
| 32. | 4337637 | [3] | PIN | |
| 35. | 3069727 | [1] | Gear;SUN | |
| 36. | 8050210 | [1] | PIPE | |
| 37. | 94-2012 | [1] | PLUG | |
| 60. | 8065302 | [1] | PELUAR | (untuk transportasi) |
| 61. | J011050 | [8] | BOLT;SEMS | (untuk transportasi) |
| 62. | 94-2011 | [1] | PLUG | (untuk transportasi) |
| 100. | 4330219 | [1] | MOTOR OIL | |
| 102. | 927488 | [1] | RING;RETENING | |
| 104. | 4264452 | [1] | PIPE | |
| 106. | 4255227 | [1] | PIPE | |
| 107. | 4298608 | [1] | PDB | |
| 108. | 3053093 | [1] | NAME-PLATE | |
| 109. | M492564 | [2] | Screw; Drive | |
| 110. | M341025 | [1] | BOLT;SOCKET | |
| 111. | 3074223 | [1] | Gauge;Level | |
| 200. | 9148921 | [1] | Perangkat Swing | (Tanpa motor) |
