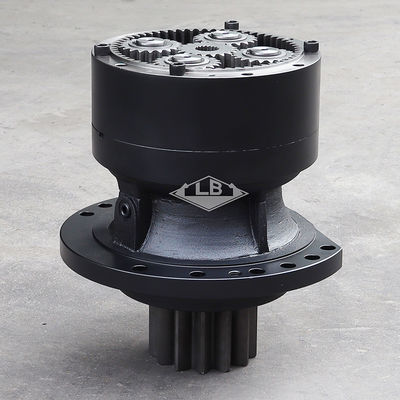

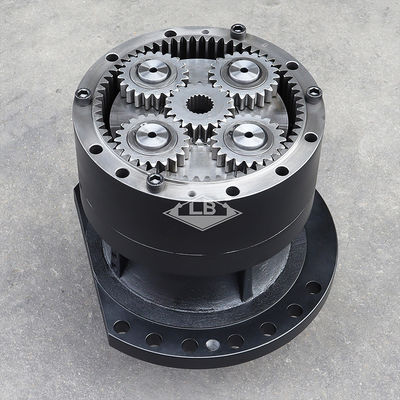

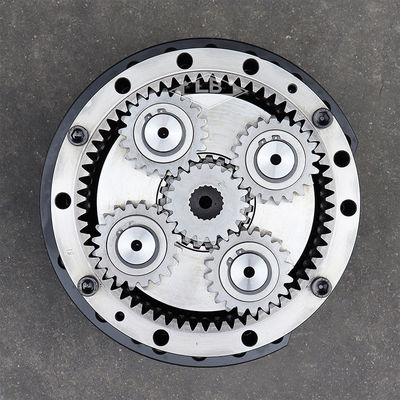

SK200-8 E215B Swing REDUCTION ASSEMBLY YN32W00022F1 SK200-8 swing gearbox untuk excavator
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | SK200-8 swing gearbox | |||||
| Peralatan | Mendaftar ke Kobelco EXKAVATOR | |||||
| Bagian no. | YN32W00022F1 | |||||
| NO.1 gigi spline gear matahari | 19 spline | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 160 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
| YN32W00022F1 | [1] | Unit Pengurangan Gir | SMSwing Reducer Assembly digantikan oleh nomor bagian: YN32W00022F2 | |
| 1. | YN32W01051P1 | [1] | SHAFT | SM |
| 2. | YN32W01052P1 | [1] | Gear | SM |
| 3. | YN32W01117P1 | [4] | Gear | SMPinton |
| 4. | YN32W01054P1 | [1] | Gear | SM |
| 5. | YN32W01055P1 | [4] | Gear | SM |
| 6. | YN32W01056P1 | [1] | RING GEAR | SM |
| 7. | YN32W01118F1 | [1] | Spider | SMTermasuk, Referensi 7-1 & 7.2 |
| 7-1. | YN32W01119P1 | [1] | Laba-laba | |
| 7-4. | YN32W01120P1 | [1] | Selang | |
| 8. | YN32W01058P1 | [1] | Pengangkut, Perumahan, Spider | SM |
| 9. | YN32W01067P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | Bantalan Bola | KOBDigantikan oleh nomor bagian: 25Z804D18 |
| 11. | YN32W01029P1 | [1] | Bantalan Bola | KOBDigantikan dengan nomor bagian: R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM |
| 13. | YN32W01104P1 | [1] | Kotak | SMDigantikan oleh nomor bagian: YN32W00022F2 |
| 14. | YN32W01026P1 | [4] | PENGURUS TEKAN | KOB |
| 15. | YN32W01028P1 | [4] | PENGURUS TEKAN | KOB |
| 16. | YN32W01022P1 | [136] | Roller | KOB |
| 17. | YN32W01072P1 | [4] | PENGUNJUNG PENGUNJUNG | SM |
| 18. | YN32W01063P1 | [8] | PEMANAS | SM |
| 19. | ZR16X03500 | [1] | RING | KOBPengendalian -- ID 32,20 x OD 35 x Th 1,6 mm |
| 20. | ZR16X09000 | [1] | RING | KOBPengendalian -- ID 84.50 x OD 108 x Th 3.0mm |
| 21. | YN32W01082P1 | [1] | Sleeve | SM |
| 22. | ZP26D08025 | [4] | PIN | KOBOD 08 x 25mm Panjang |
| 23. | HS23C14135G1 | [11] | Screw, M14 x 135mm | SMM14x2.0x135mm |
| 24. | PV02B01073DB | [2] | PDB | KOB18.4mm Plastik |
| 25. | YN32W01080D1 | [1] | tabung kaku | SM1/2 " PT x 112mm Panjang |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SM1/2 " PT |
| 27. | ZE82T08000 | [1] | PLUG | KOB1/2 " PT |
| 28. | ZR16X04000 | [4] | RING | KOBPengendalian -- ID 37 x OD 40 x Th 1,8 mm |
| 29. | YN32W01081P1 | [1] | OIL SEAL | SM |
| 30. | ZG91V02000 | [1] | Lube Nipple | KOB67°x1/8" PT |
| 31. | 2444Z3305 | [1] | Bernafas | KOB |
