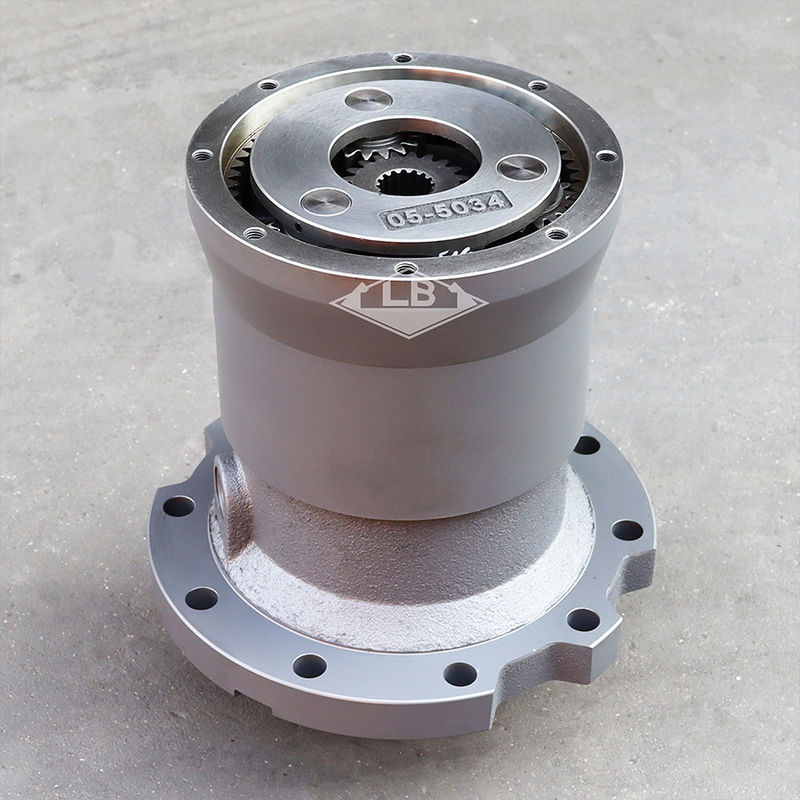

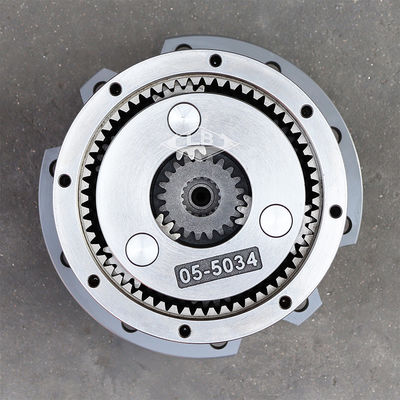

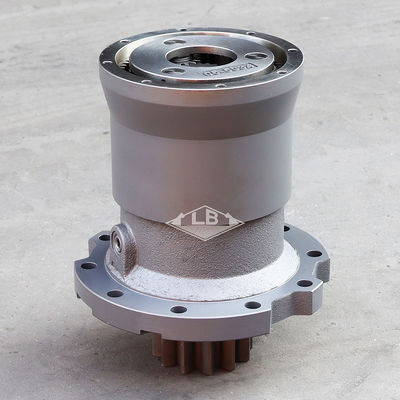

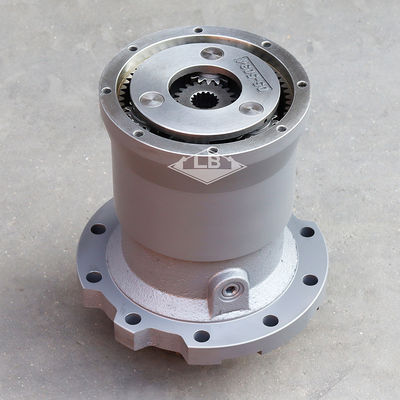

Excavator EX60-2 EX60-3 EX75UR Swing Device TANPA MOTOR 9118328 EX60-2 Swing gearbox untuk excavator
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | Swing Gearbox Excavator,Swing Motor Gearbox,Unit pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EX60-2 EX60-3 EX75UR Swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9118328 | |||||
| NO.1 gigi spline gear matahari | 16splines | |||||
| Gigi poros swing pinion | 12T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 55 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 00. | J021035 | [8] | BOLT;SEMS | |
| 01. | 2030269 | [1] | SHAFT;PROP. | |
| 02. | 3051675 | [1] | Sleeve | |
| 03. | A811060 | [1] | O-RING | |
| 04. | 4260666 | [1] | BRG.; SPH.ROL. | |
| 05. | 4259935 | [1] | SEAL; Minyak | |
| 06. | 3051676 | [1] | PELUAR | |
| 07. | 4260028 | [2] | O-RING | |
| 10. | 4274179 | [1] | BRG.; SPH.ROL. | |
| 11. | 1015181 | [1] | Perumahan | |
| 13. | 960323 | [1] | RING;RETENING | |
| 14. | 1015182 | [1] | Gear;RING | |
| 16. | 2031037 | [1] | Pengangkut | |
| 17. | 4176070 | [2] | PLATE;THRUST | |
| 18. | 9735359 | [3] | Gear;Planetary | |
| 19. | 4267081 | [6] | PLATE;THRUST | |
| 20. | J011235 | [16] | BOLT;SEMS | |
| 21. | 4259937 | [3] | PIN | |
| 22. | 4139939 | [6] | PIN;SPRING | |
| 23. | 3051678 | [1] | Gear;SUN | |
| 24. | 2031036 | [1] | Pengangkut | |
| 25. | 3051679 | [3] | Gear;Planetary | |
| 26. | 4259938 | [3] | BRG.; jarum | |
| 27. | 4259939 | [3] | PIN | |
| 28. | 3051680 | [1] | Gear;SUN | |
| 30. | 4270468 | [6] | PLATE;THRUST | |
| 35. | 8050351 | [1] | PIPE | |
| 36. | 94-2012 | [1] | PLUG | |
| 37. | 3063597 | [1] | PELUAR | (untuk transportasi) |
| 38. | 94-2011 | [1] | PLUG | (untuk transportasi) |
| 39. | J011035 | [8] | BOLT;SEMS | (untuk transportasi) |
| 40. | 4295829 | [1] | O-RING | (untuk transportasi) |
| 100. | M341036 | [8] | BOLT;SOCKET | |
| 106. | 3053451 | [1] | Gauge;Level | |
| 108. | 4272301 | [1] | PELAT | |
| 109. | 4255227 | [1] | PIPE | |
| 110. | 4255226 | [1] | PDB | |
| 111. | 4272670 | [1] | MOTOR OIL | T 0602201 |
| 111. | 4272670 | [1] | MOTOR OIL | T 4325475 |
| 111. | 4325475 | [1] | MOTOR OIL | |
| 112. | 4295829 | [1] | O-RING | |
| 113. | 3053093 | [1] | NAME-PLATE | |
| 114. | M492564 | [2] | Screw; Drive | |
| 115. | 4259940 | [1] | PIPE | |
| 227. | J931645 | [10] | BOLT | |
| 227. | J931650 | [10] | BOLT | |
| 228. | J222016 | [10] | PEMANAS | |
| 300. | 9118328 | [1] | Perangkat Swing (tanpa motor) |
