Informasi Detail |
|||

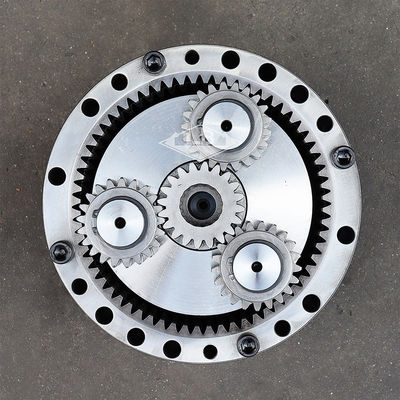

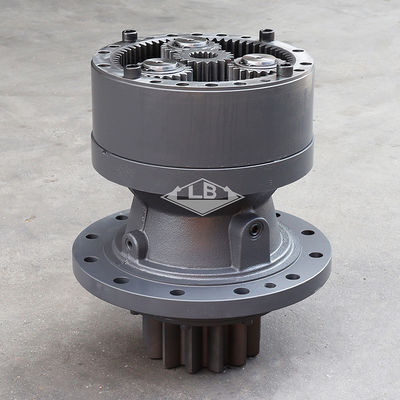

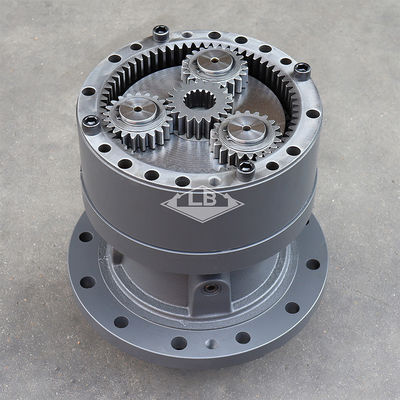

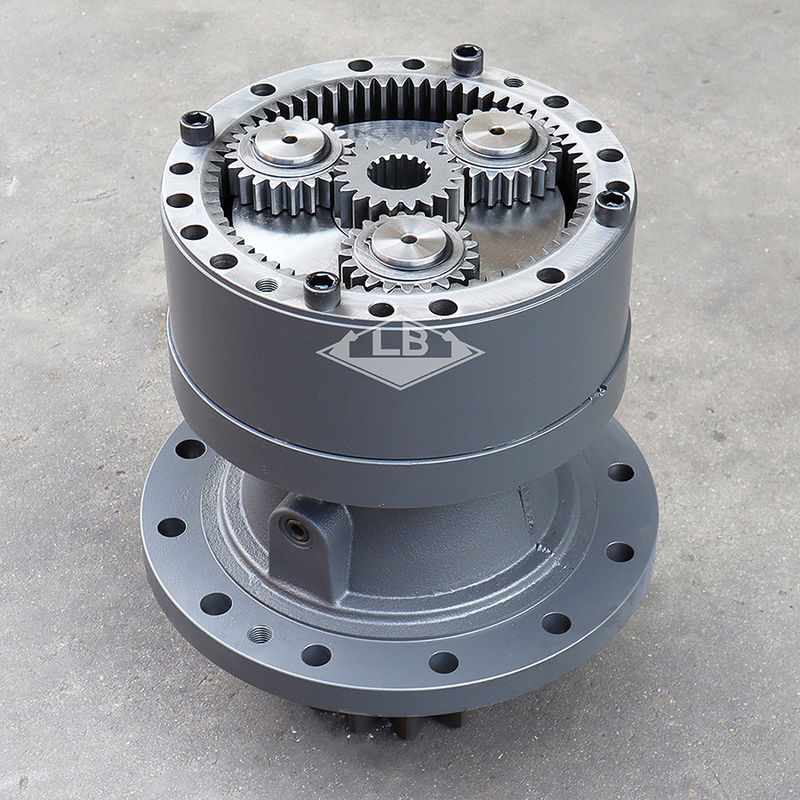

| Menyoroti: | R210-7 Swing motor gearbox,gearbox mesin swing 31N6-10180,31N6-10181 |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | R250-7 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 31N6-10180 31N6-10181 31N6-10160 31N6-10161 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 190 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | Swing Motor ASSY | |
| *-2. | 31N6-10180 | [1] | Gear pengurangan ayunan | |
| *-2. | 31N6-10181 | [1] | Gear pengurangan ayunan | |
| 1. | XKAQ-00771 | [1] | KASING | |
| 1. | XKAQ-00962 | [1] | KASING | |
| 2. | XKAQ-00331 | [1] | SHAFT-DRIVE | |
| 2. | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00018 | [1] | SPACER | |
| 5. | XKAQ-00026 | [1] | Berkas-Roller | |
| 6. | XKAQ-00032 | [1] | SEAL-OIL | |
| 7. | XKAQ-00029 | [1] | Berkas-Roller | |
| 7. | XKAQ-00647 | [1] | Berkas-Roller | |
| 7. | XKAQ-00961 | [1] | Berkas-Roller | |
| 8. | XKAQ-00076 | [1] | Plate-thrust | |
| 9. | XKAQ-00075 | [1] | Pengangkut 2 | |
| 10. | XKAQ-00074 | [1] | RING-STOP | |
| 11. | XKAQ-00284 | [1] | GANG-RING | |
| 11. | XKAQ-00779 | [1] | GANG-RING | |
| 12. | XKAQ-00072 | [4] | PIN-KNOCK | |
| 13. | XKAQ-00976 | [1] | Gear-pinion | |
| 14. | XKAQ-00071 | [6] | Kekuatan pencuci | |
| 15. | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 16. | XKAQ-00070 | [3] | PIN | INCL 23 |
| 17. | XKAQ-00048 | [6] | Pin-SPRING | |
| 18. | XKAQ-00011 | [1] | Gear-SUN 2 | |
| 19. | XKAQ-00015 | [1] | Pengangkut 1 | |
| 20. | XKAQ-00057 | [3] | Sisi Plat 1 | |
| 21. | XKAQ-00019 | [3] | PIN 1 | |
| 22. | XKAQ-00030 | [3] | Jarum kandang | |
| N23. | @ | [3] | BUSHING 2 | |
| 24. | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 25. | XKAQ-00292 | [1] | LAMPUNG LAUNCHER | |
| 26. | XKAQ-00068 | [1] | Sisi Plat 3 | |
| 27. | XKAQ-00010 | [1] | Gear-SUN 1 | |
| 29. | XKAQ-00049 | [1] | PLUG | |
| 30. | XKAQ-00066 | [2] | PLUG | |
| 31. | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 34. | XKAQ-00031 | [1] | Plat-COVER | |
| 35. | XKAQ-00064 | [8] | BOLT-HEX | |
| 36. | XKAQ-00043 | [1] | PLATE-LOCK | |
| 37. | XKAQ-00042 | [2] | BOLT-HEX | |
| 38. | XKAQ-00041 | [3] | RING-STOP | |
| 39. | XKAQ-00040 | [3] | Sisi Plat 2 | |
| *-1. | @ | [1] | Unit Swing Motor |
