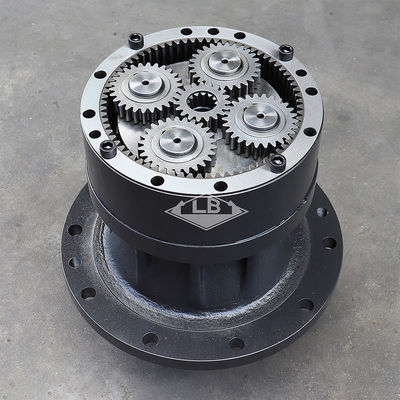

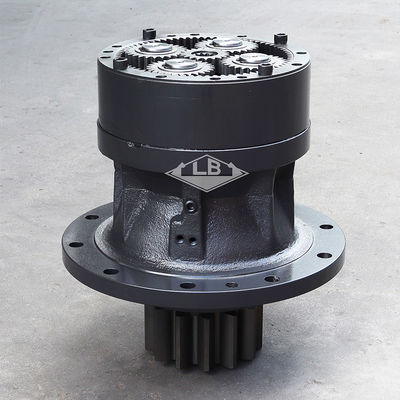

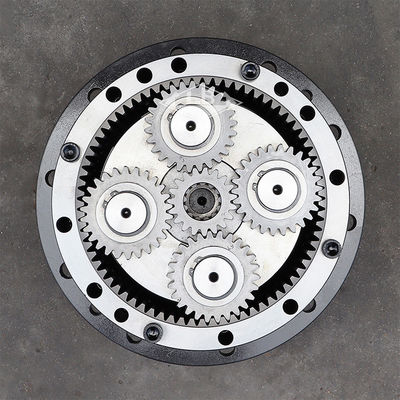

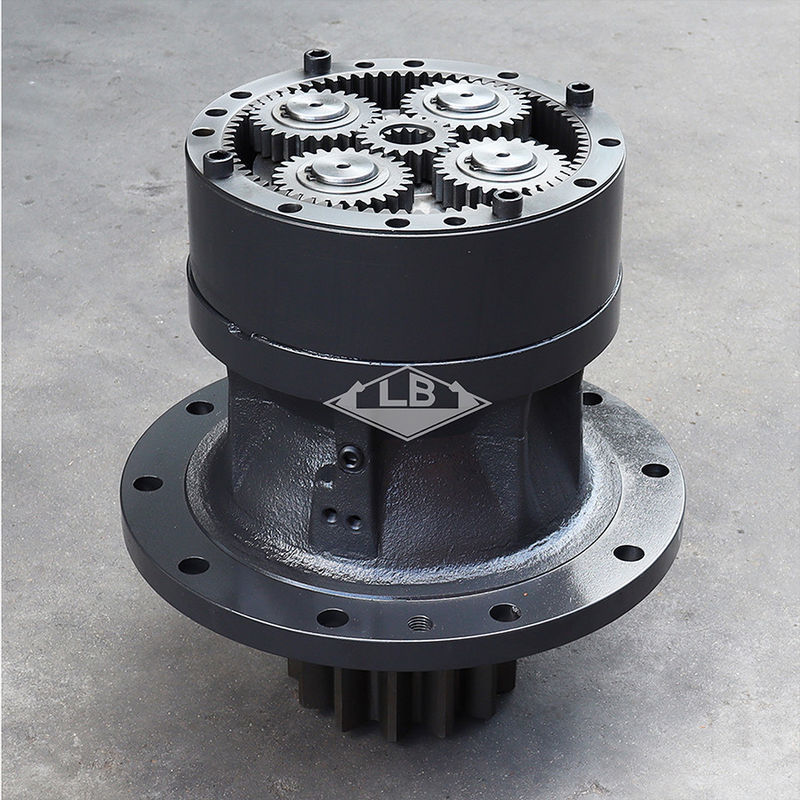

31EN-10070 31EN-10071 R250-7 Swing Gearbox R250LC-7 Swing Reduction Gear
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 31EN-10070 Swing Gearbox,31EN-10071 R250-7 Swing Gearbox,R250LC-7 peralatan pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
R250LC-7 Swing REDUCTION GEAR 31EN-10070 31EN-10071 R250-7 Swing gearbox
Parameter produk
| Pnama seni | R250-7 Swing gearbox | |||||
| Peralatan | Mendaftar untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 31EN-10070 31EN-10071 | |||||
| NO.1 gigi spline gear matahari | 13 spline | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 290 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | Swing Motor ASSY | SEE 4100 |
| *-2. | 31EN-10070 | [1] | Gear pengurangan ayunan | |
| *-2. | 31EN-10071 | [1] | Gear pengurangan ayunan | |
| 1. | XKAQ-00632 | [1] | KASING | |
| 1. | XKAQ-00633 | [1] | KASING | |
| 2. | XKAQ-00115 | [1] | SHAFT | |
| 3. | XKAQ-00116 | [1] | SPACER | |
| 4. | XKAQ-00117 | [1] | Berkas-Roller | |
| 5. | XKAQ-00118 | [1] | Plat-COVER | |
| 6. | XKAQ-00064 | [8] | BOLT-HEX | |
| 7. | XKAQ-00119 | [1] | SEAL-OIL | |
| 8. | XKAQ-00120 | [1] | Berkas-Roller | |
| 9. | XKAQ-00121 | [1] | Pengangkut 2 | |
| 10. | XKAQ-00122 | [1] | Gear-SUN 2 | |
| 10. | XKAQ-00634 | [1] | Gear-SUN 2 | |
| 11. | XKAQ-00123 | [4] | GEAR-PLANET 2 | |
| 12. | XKAQ-00124 | [4] | PIN 2 | |
| N13. | XKAQ-00533 | [4] | BUSHING 2 | |
| N34. | @ | [4] | Pin-SPRING | |
| 14. | XKAQ-00050 | [4] | Pin-SPRING | |
| 15. | XKAQ-00071 | [4] | Kekuatan pencuci | |
| 16. | XKAQ-00126 | [1] | Pengangkut 1 | |
| 17. | XKAQ-00127 | [1] | Gear-SUN 1 | |
| 18. | XKAQ-00128 | [4] | GEAR-PLANET 1 | |
| 19. | XKAQ-00019 | [4] | PIN 1 | |
| 20. | XKAQ-00030 | [4] | Jarum kandang | |
| 21. | XKAQ-00129 | [4] | Cage jarum | |
| 22. | XKAQ-00635 | [1] | GANG-RING | |
| 23. | XKAQ-00072 | [4] | PIN-KNOCK | |
| 24. | XKAQ-00131 | [12] | BOLT-SOCKET | |
| 25. | XKAQ-00132 | [1] | Gear-pinion | |
| 26. | XKAQ-00296 | [1] | PLATE-LOCK | |
| 27. | XKAQ-00292 | [1] | LAMPUNG LAUNCHER | |
| 28. | XKAQ-00042 | [2] | BOLT-HEX | |
| 29. | XKAQ-00066 | [2] | PLUG | |
| 30. | XKAQ-00049 | [1] | PLUG | |
| 31. | XKAQ-00040 | [4] | Sisi Plat 2 | |
| 32. | XKAQ-00041 | [4] | RING-STOP | |
| 33. | XKAQ-00048 | [4] | Pin-SPRING | |
| 34. | XKAQ-00133 | [1] | Pin-SPRING | |
| 35. | XKAQ-00166 | [1] | BAR-GAUGE | |
| 35. | XKAQ-00034 | [1] | BAR-GAUGE | |
| 36. | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 36. | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 37. | XKAQ-00143 | [1] | Respirator pasca-udara | |
| 37-1. | @ | [1] | POST | |
| 37-2. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| *-1. | @ | [1] | Unit Swing Motor | SEE 4100 |
| N. | @ | [1] | Bagian-bagian yang tidak disuplai |
