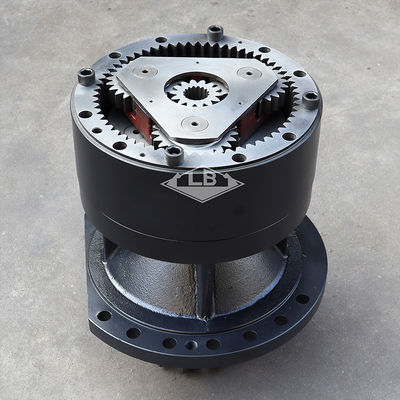

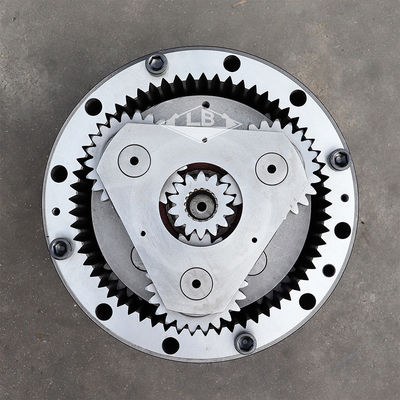

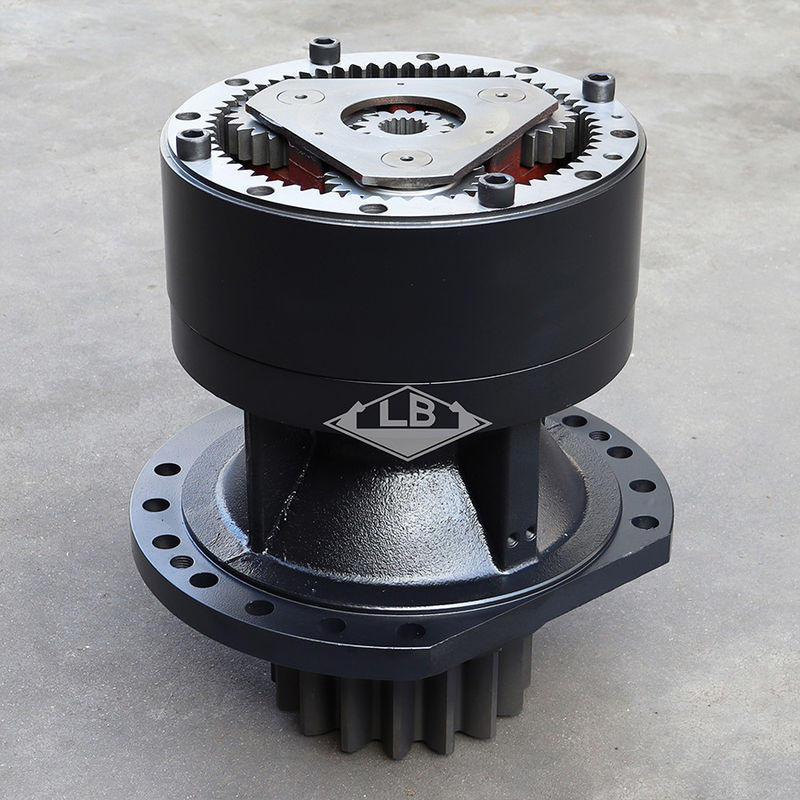

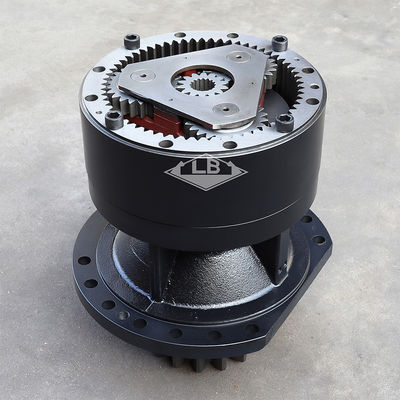

• SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer
  • SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer
  • SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer
  • SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer
SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer

SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer

Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

SK350-8 swing drive gearbox

,

gearbox pendorong ayunan LC32W00011F1

,

LC32W00011F1 gearbox pengurangan ayunan

Deskripsi Produk

Parameter produk
Pnama seni SK350-8 swing gearbox
Peralatan Mendaftar ke Kobelco EXKAVATOR
Bagian no. LC32W00011F1
NO.1 gigi spline gear matahari 16 spline
Gigi poros swing pinion 16T
Kondisi barang Baru
Logo LB
Berat kotor 400 KG
MOQ 1 pcs

Deskripsi produk

SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer 0SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer 1SK350-8 Swing Drive Gearbox LC32W00011F1 Swing Reduction Gearbox SK350-8 Swing Reducer 2

Posisi. Bagian No. Qty Nama bagian Komentar
. . LC15V00027F2 [1] Motor hidraulik SMSwing (Motor dan Reduksi)
. . LC32W00011F1 [1] REDUCER KOBSwing Reduction Assembly Termasuk Referensi 1-40
1. LC32W01027P1 [1] PINION KOB
2. LC32W01060P1 [1] SHAFT KOB
3. LC32W01006P1 [1] PENGANTAR SUN KOB
4. LC32W01021P1 [3] PINION KOB
5. LC32W01017F1 [1] Spider Assy. KOB
6. LC32W01019P1 [1] Spider KOB
7. LC32W01020P1 [3] SHAFT KOB
8. LC32W01008P1 [1] PENGANTAR SUN KOB
9. LC32W01024P1 [4] PINION KOB
10. LC32W01009P1 [1] RING GEAR KOB
11. LC32W01023P1 [1] Spider KOB
12. LC32W01025P1 [4] SHAFT KOB
13. LC32W01036P1 [11] PENGUNJUNG PENGUNJUNG KOB
14. LC32W01030P1 [1] Bantalan Bola KOBBentuk bola
15. LC32W01031P1 [1] Bantalan Bola KOBBentuk bola
16. LC32W01032P1 [1] OIL SEAL KOB
17. LC32W01010P1 [1] Perumahan KOB
18. LC32W01033P1 [1] OIL SEAL KOB
19. LC32W01011P1 [1] Sleeve KOB
20. LC32W01012P1 [1] Sleeve KOB
21. LC32W01013P1 [1] PELAT KOB
22. LC32W01061P1 [1] PELAT SM
23. LC32W01014P1 [1] RING KOB
24. LC32W01022P1 [6] WASHER, THRUST (mencuci, mendorong) KOBMencuci, menanam.
25. LC32W01026P1 [8] WASHER, THRUST (mencuci, mendorong) KOBMencuci, menanam.
26. ZR16X04500 [1] RING KOBCepat
27. ZR16X04200 [3] SNAP RING KOB
28. ZP26D10040 [4] ROLL PIN KOBMusim semi
29. ZS23C20200 [12] Screw, Hex Socket Head, M20 x 200mm KOBCap
30. ZG91V02000 [1] LUBE NIPPLE, 67 derajat x 1/8 " PT KOB67° x 1/8" PT digantikan oleh nomor bagian: 72283072
31. 2444Z3305 [1] Bernafas KOBKatup, Bantuan
32. YN32W01080D2 [1] TUBE KOB
33. ZG31U08000 [1] HYD CONNECTOR SM90
34. ZE82T08000 [1] PLUG KOB
35. PV02B01073DE [2] PDB KOB
36. LC32W01062P1 [3] PELUANG SMCap
37. LC32W01018D1 [1] SHIN KOB(0.1)
38. LC32W01018D2 [1] SHIN KOB(0,2)
39. LC32W01018D3 [1] SHIN KOB(0,3)
40. LC32W01018D4 [1] SHIN KOB(0,5)
