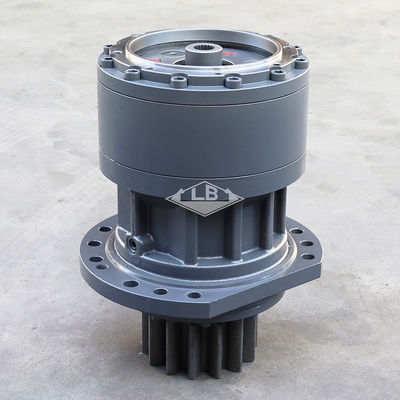

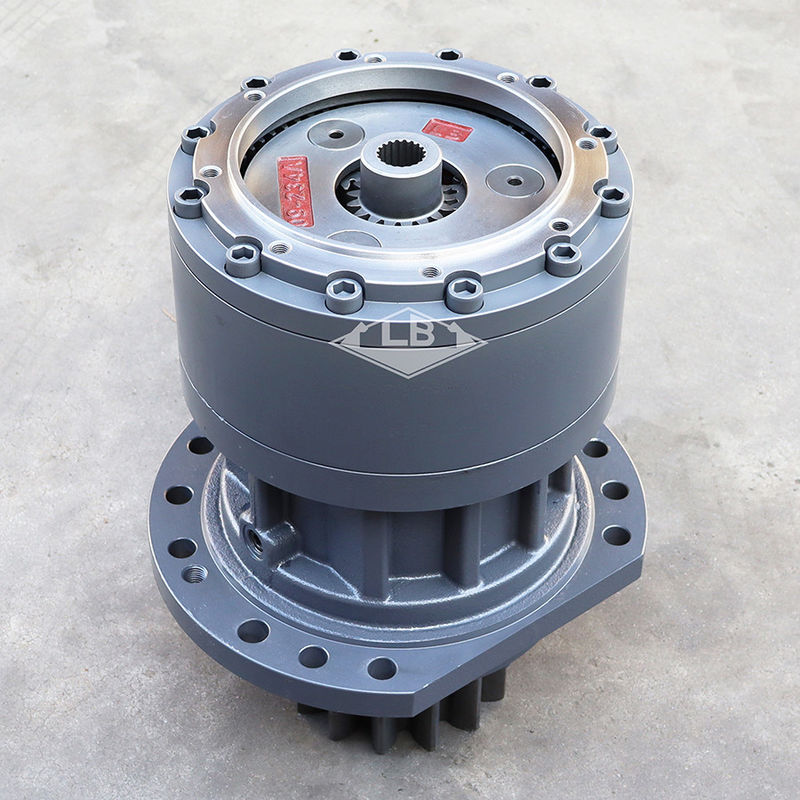

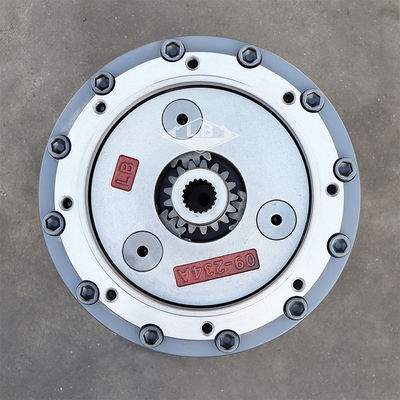

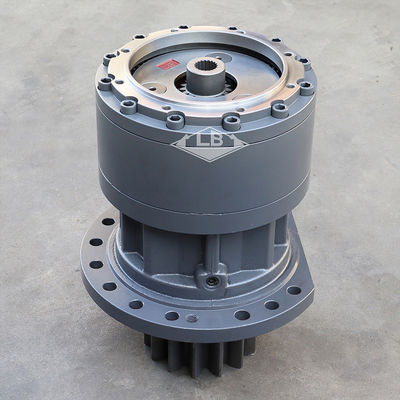

SA7118-30130 SA7118-30140 Swing Gearbox VOE14541030 VOE14521444 EC460
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | SA7118-30130 Gearbox mesin ayunan,SA7118-30140 Gearbox mesin ayunan,Swing drive gearbox VOE14541030 |
||
|---|---|---|---|
Deskripsi Produk
Parameter produk
| Pnama seni | EC460 EC4 Swing gearbox | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | SA7118-30130 SA7118-30140 VOE14541030 VOE14521444 | |||||
| NO.1 gigi spline gear matahari | 19 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 200 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada grup Swing gearbox:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| SA7118-30140 | [1] | Gearbox | SER NO 10001-10410 | |
| VOE14521444 | [1] | Gearbox | SER NO 10411-11387 | |
| VOE14541030 | [1] | Kotak gir swing | SER NO 11388- | |
| 1. | SA1020-02081 | [1] | Katup | |
| 2. | SA7118-30500 | [1] | Selang | SER NO 10001-11387 |
| VOE14540404 | [1] | Selang | SER NO 11388- | |
| 3. | VOE14509280 | [1] | Kerah | SER NO 10001-11387 |
| VOE14540405 | [1] | Kerah | SER NO 11388- | |
| 4. | VOE14509281 | [1] | Tutup | |
| 5. | VOE990596 | [1] | O-ring | |
| 6. | VOE14508911 | [1] | Segel | |
| 7. | VOE993025 | [10] | Sekrup heksagon | |
| 8. | VOE14640027 | [1] | Bantalan rol | |
| 9. | VOE14558674 | [1] | Bantalan rol | |
| 10. | SA9541-01090 | [1] | Cincin penahan | |
| 11. | SA7118-30510 | [1] | Kasus | |
| 12. | SA7118-30350 | [1] | Perlengkapan cincin | |
| 13. | VOE950677 | [4] | Pin | |
| 14. | SA984363 | [12] | Bolt | |
| 15. | SA7118-30370 | [1] | Piring | |
| 16. | SA7118-30380 | [1] | Cincin dorong | |
| 17. | SA7118-30390 | [1] | Peralatan | |
| 18. | SA7118-30480 | [1] | Mesin cuci | |
| 19. | SA7118-30490 | [1] | Peralatan matahari | |
| 20. | SA7118-34510 | [1] | Adaptor | |
| 21. | SA7118-30200 | [1] | Pembawa planet | |
| 22. | SA7118-30230 | [3] | Pin | |
| 23. | SA7118-30260 | [6] | Mesin cuci | |
| 24. | SA9325-08010 | [3] | Pin pegas | |
| 25. | VOE14528725 | [1] | Pembawa planet | |
| 26. | SA7118-30430 | [3] | Pin | |
| 27. | VOE14550879 | [3] | Pengisi jarum | |
| 28. | SA7118-30450 | [3] | Mesin cuci | |
| 29. | SA7118-30460 | [3] | Mesin cuci | |
| 30. | SA9541-01042 | [3] | Cincin penahan | |
| 31. | SA9325-08010 | [3] | Pin pegas | |
| 100. | VOE14526214 | [1] | Kit perbaikan |
