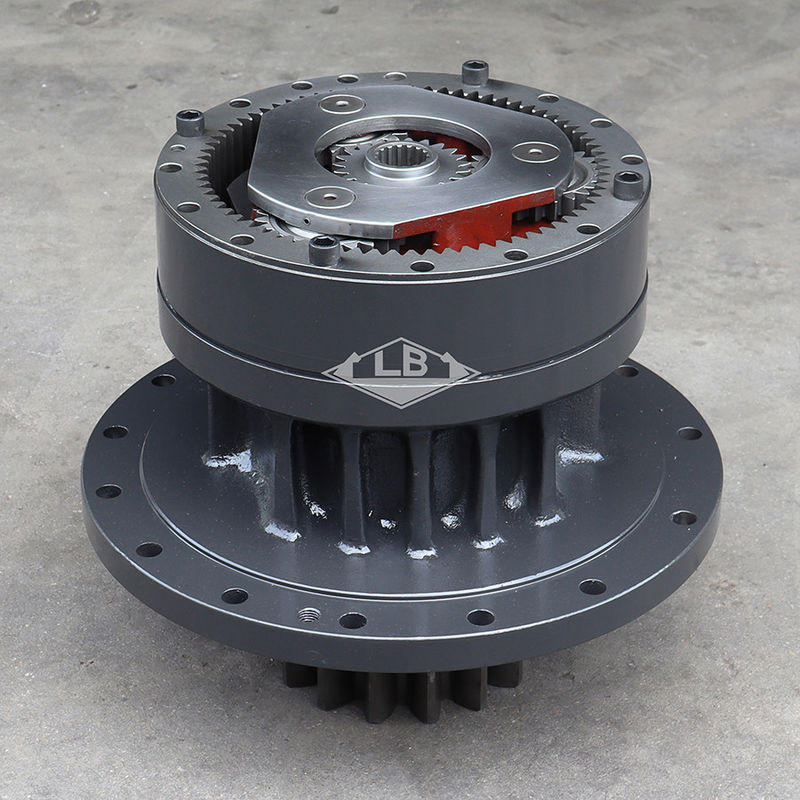

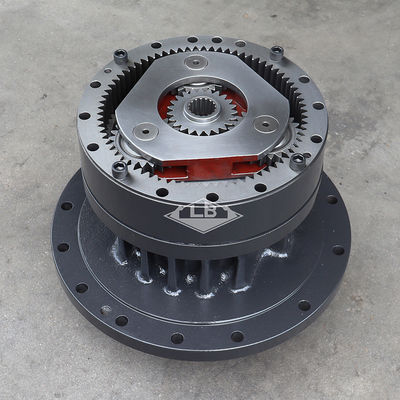

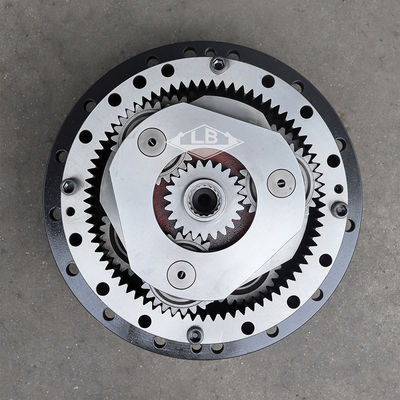

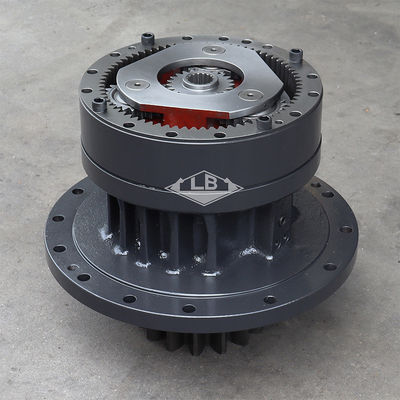

• VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER
  • VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER
  • VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER
  • VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER
VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER

VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER

Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

VOE14566202 Swing drive gearbox

,

VOE14724042 EC240 Swing drive gearbox

,

EC240 EC250 Swing REDUCER

Deskripsi Produk

Parameter produk
Pnama seni EC240 EC250 Swing gearbox
Peralatan Terapkan pada VOLVO EXKAVATOR
Bagian no. VOE14566202 VOE14724042
NO.1 gigi spline gear matahari 23 spline
Gigi poros swing pinion 15T
Kondisi barang Baru
Logo LB
Berat kotor 325 KG
MOQ 1 pcs

Deskripsi Produk

VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER 0VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER 1

Bagian pada grup Swing gearbox:

VOE14566202 VOE14724042 EC240 Swing Drive Gearbox EC240 EC250 Swing REDUCER 2

Posisi. Bagian No. Qty Nama bagian Komentar
VOE14566202 [1] Kotak gir swing
VOE14566202 Kotak gir swing S/N -231281, -245014,-270803, -280131
VOE14724042 Kotak gir swing S/N 231282-, 245015-,270804-, 280132-
1. VOE14566206 [1] Kasus
2. VOE14552874 [1] Cincin
3. VOE14566204 [1] Kerah
4. VOE14566203 [1] Selang
5. VOE14566205 [1] Tutup
6. VOE14566209 [1] Peralatan
7. VOE947324 [16] Hex. sekrup soket
8. VOE984088 [12] Hex. sekrup soket
9. VOE14552875 [1] Bantalan rol
10. SA9415-43012 [1] Plug
11. VOE914167 [1] Puting pelumas
12. VOE14566207 [1] Segel
13. VOE14566208 [1] Bantalan rol
14. VOE914492 [1] Ring snap
15. SA7118-30380 [1] Cincin dorong
16. VOE14566216 [1] Peralatan
17. VOE14880960 [1] Cincin penahan
18. VOE14566222 [1] Peralatan
19. VOE14547278 [1] Mesin pencuci dorongan
20. VOE14540733 [1] Pipa
21. VOE14566210 [1] Pembawa planet
22. VOE14566211 [1] Pembawa planet
23. VOE14566215 [4] Pin
24. VOE14566212 [4] Peralatan
25. VOE14566213 [4] Pembuangan
26. VOE14556491 [8] Mesin cuci
27. SA9325-06012 [4] Pin pegas
28. VOE14566217 [1] Pembawa planet
29. VOE14566218 [1] Pembawa planet
30. VOE14566219 [3] Peralatan
31. VOE14566220 [3] Bantalan
32. VOE14566221 [3] Pin
33. SA9325-06012 [3] Pin pegas
34. VOE14556491 [6] Mesin cuci
35. VOE950677 [2] Pin
36. VOE949329 [1] Gasket
37. VOE14722461 [1] Katup pembuangan
