KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer

KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer

Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

KTC0185 Swing Gearbox

,

KTC10240 Swing Gearbox

,

KTC10150

Deskripsi Produk

SH460 CX460 Swing REDUCER KTC0185 KTC10240 KTC10150 Swing Gearbox

Parameter produk
Pnama seni SH460 CX460 Swing gearbox
Peralatan Memohon untuk Sumitomo, kasus Excavator
Bagian no. KTC0185 KTC10240 KTC10150
NO.1 gigi spline gear matahari 20 spline
Gigi poros swing pinion 16T
Kondisi barang Baru
Logo LB
Berat kotor 474 KG
MOQ 1 pcs

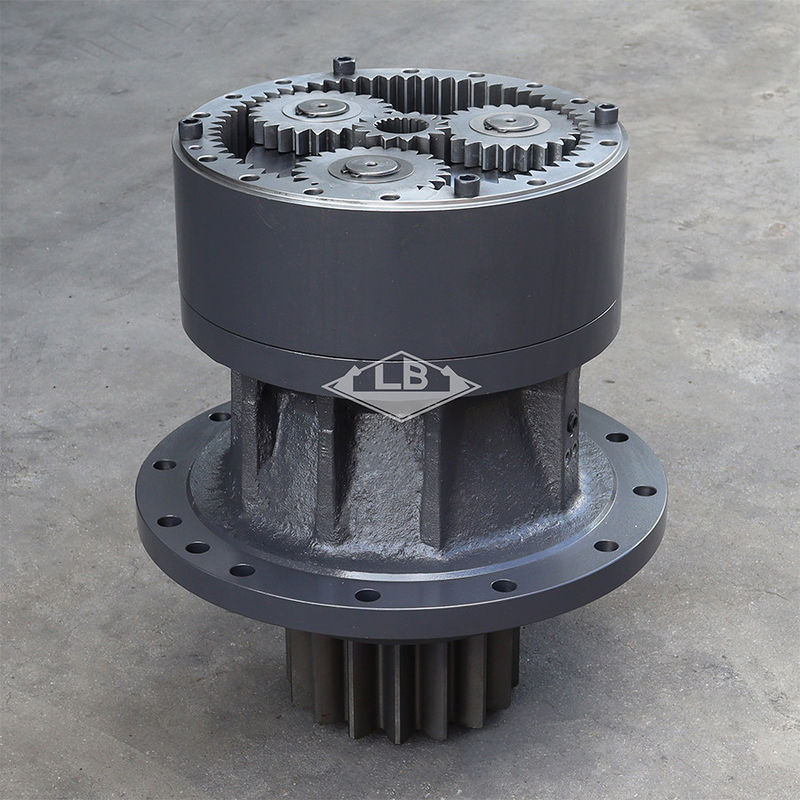

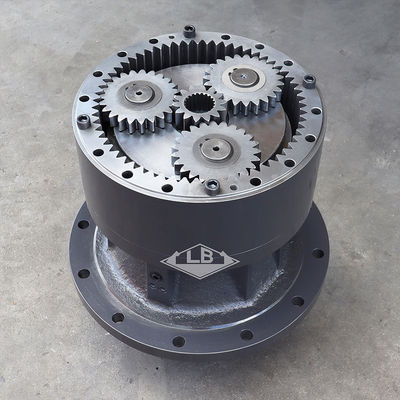

KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer 0KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer 1

Bagian pada kelompok (CX470C) - CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-7/16):

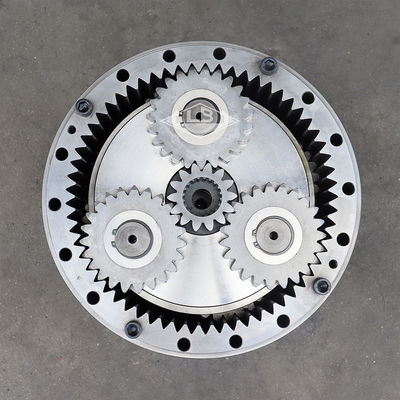

KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer 2

Posisi. Bagian No. Qty Nama bagian Komentar
1. KTC0171 [1] Motor, hidraulik SUM
1. KTC0171R [1] Motor REMAN-HYD RACCX470C CRAWLER EXCAVATOR, TIER 4 (NA) (9/11-)
1. KTC0171C [1] CORE-MOTOR HYDRAULIC RACNomor Pengembalian
3. KTC10150 [1] Unit Pengurangan Gir SUMDigantikan oleh nomor bagian: KTC10240
3. KTC10240R [1] Unit Pengurangan REMAN RACCX470C CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-), Reman untuk PN Baru KTC10150
3. KTC10240C [1] Unit Pengurangan CORE RACNomor Pengembalian
4. KTC10070 [1] PENGANTAR SUN SUM(NO 1)
5. KTC10090 [1] SHAFT, PLANETAR CAR SUMPembawa, Planetary, NO 1, termasuk 6 - 10
6. NSS [1] TIDAK DIJUAL SEPARAT CONPembawa, PINION, PLANETARY NO 1
7. NSS [3] TIDAK DIJUAL SEPARAT CONGear, NO 1
8. NSS [3] TIDAK DIJUAL SEPARAT CONPIN, PLANETARY No 1
9. KTC0156 [3] PELAT SUMWASHER, GEAR PLANETARY Digantikan dengan nomor bagian: KTC10210, KTC0182
10. NSS [1] TIDAK DIJUAL SEPARAT CONWASHER, THRUST (mencuci, mendorong)
11. KTC10080 [1] PENGANTAR SUN SUM(NO 2)
12. KTC0166 [1] RING GEAR SUM
14. KTC10210 [1] Pengangkut PINION SUMPengangkut, Planetary, NO 2, termasuk 15 - 19
15. NSS [4] TIDAK DIJUAL SEPARAT CONPembawa, PINION, PLANETARY NO 2
16. NSS [4] TIDAK DIJUAL SEPARAT CONGear, NO 2
17. NSS [4] TIDAK DIJUAL SEPARAT CONPIN, PLANETARY No 2
18. 338W100Z040B [4] COTTER PIN SUM
19. KTC0155 [4] PIN SUM
20. KTC0170 [1] Perumahan SUM
21. KTC0150 [1] PEMBANGUNAN, 130mm ID x 210mm OD x 64mm W SUM
22. 150824A1 [1] PLUG SUM
23. 158352A1 [2] PLUG SUM
24. KTC0158 [1] Kabel penahan SUM
25. KTC0151 [1] SPACER SUM
26. KTC0159 [1] Kabel penahan SUM
27. KTC0152 [1] COVER BEARING SUM
28. KTC0154 [1] SPACER SUM
29. KTC0190 [1] Bantalan, 140mm ID x 300mm OD x 102mm W SUM
30. KHP1406 [1] Lemak
31. KTC0153 [1] OIL SEAL SUM
32. KTC0184 [1] SHAFT ASSY. SUM
33. 150237A1 [18] BOLT, Hex Skt. SUM
34. NSS [1] TIDAK DIJUAL SEPARAT CONPapan nama
35. 301-1413 [2] Drive Screw, Drive, 2 x 3/16 " CASDigantikan oleh nomor bagian: 86542114
36. KTC0149 [1] Gear SUM
37. 195A160RN [1] PEMANAS SUM
38. 167071A1 [1] Pengendali SUM
39. 627-20050 [2] Bolt, Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd CASDigantikan oleh nomor bagian: 9843590
40. 153630A1 [1] Lube Nipple SUM
41. 150317A1 [1] PIN Kepala, 24mm OD x 90mm L SUM
42. 166477A1 [12] BOLT,Sems, M24 x 90mm SUM
43. 150915A1 [1] Adaptor SUM
44. KRJ5902 [1] selang hidraulik,12.70 mm ID x 360,00 mm SUM
45. KHP0578 [1] PLUG SUM
46. KHR2584 [1] Clamp SUM
47. KHJ1215 [1] BOLT, Spcl SUM

Deskripsi Produk

Informasi Perusahaan

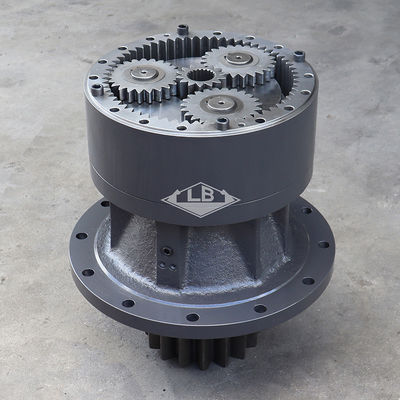

KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer 3
