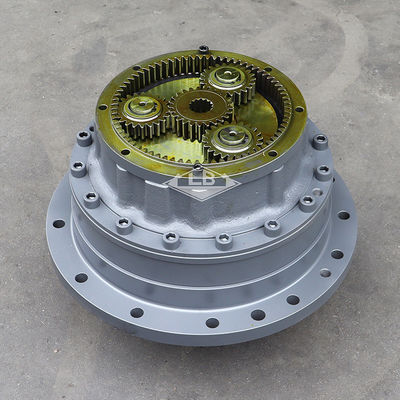

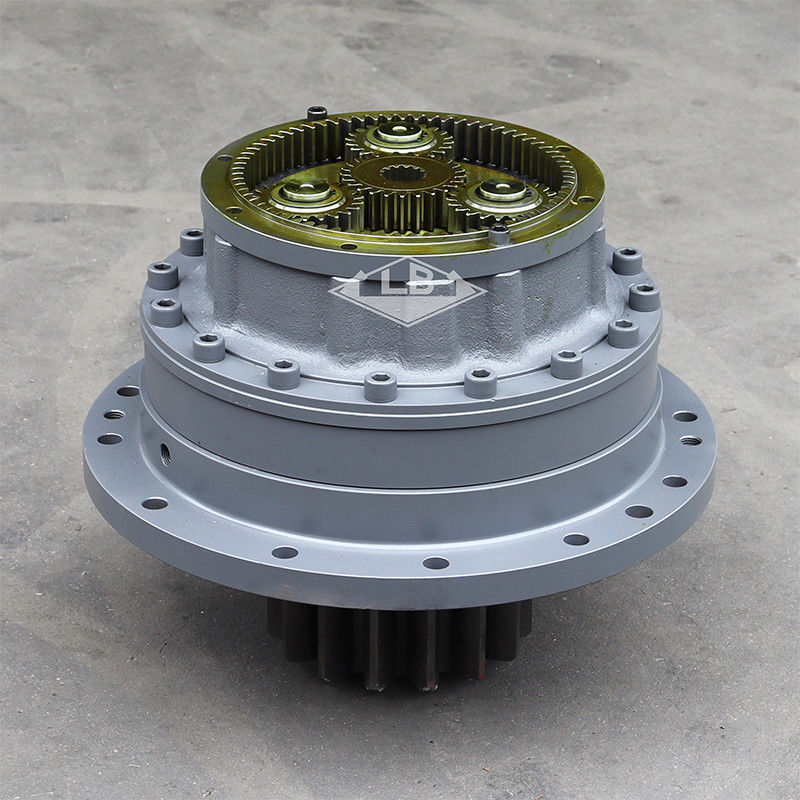

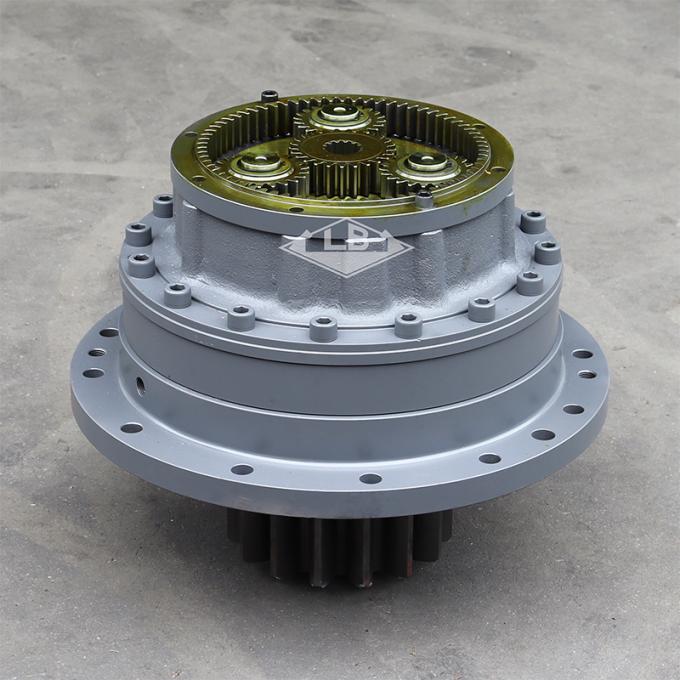

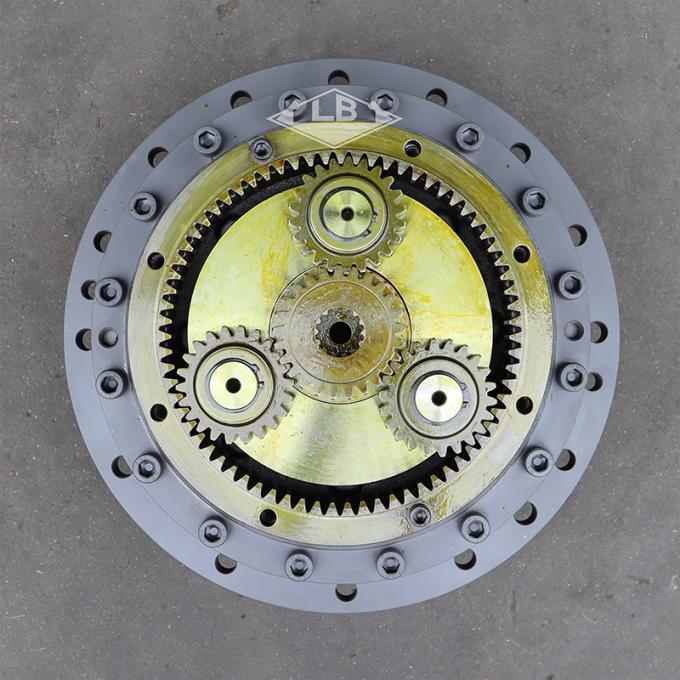

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | VOE14503783 Swing drive gearbox,VOE14542163 Swing drive gearbox,EC240 gearbox pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
VOLVO EC240 gearbox pengurangan ayunan VOE14503783 VOE14542163 VOE7118-34100 EC240 gearbox ayunan
Parameter produk
| Pnama seni | Kotak gir swing EC240 | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14503783 VOE14542163 VOE7118-34100 | |||||
| NO.1 gigi spline gear matahari | 14 spline | |||||
| Gigi poros swing pinion | 15T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 298KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada grup Swing gearbox:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14542163 | [1] | Gearbox | ||
| 1. | VOE14518703 | [1] | Pengangkut | |
| 2. | SA1036-00530 | [1] | Crankshaft | |
| 3. | SA1036-00550 | [3] | Peralatan Planet | |
| 4. | SA1036-00610 | [3] | Pin | |
| 5. | SA7118-34231 | [3] | Pin | |
| 6. | SA7118-34260 | [3] | Pembuangan | |
| 7. | SA1036-00620 | [6] | Mesin cuci | |
| 8. | SA9325-10012 | [3] | Pin pegas | |
| 9. | VOE14640028 | [1] | Bantalan | |
| 10. | SA1036-00710 | [1] | Bantalan | |
| 11. | SA1036-00630 | [1] | Tombol | |
| 12. | VOE14558605 | [1] | Segel | SER NO 10001-13402SER NO 80001-81085 |
| VOE14558605 | [1] | Segel | SER NO 13403-SER NO 81086- | |
| 13. | SA7118-01560 | [1] | Piring | |
| 14. | SA7114-12590 | [4] | Pergilah. | |
| 15. | VOE14504206 | [1] | Peralatan | |
| 16. | SA1036-00700 | [4] | Pin | |
| 17. | SA7118-34340 | [1] | Casing | |
| 18. | VOE14510986 | [1] | Peralatan matahari | |
| 19. | VOE984369 | [16] | Hex. sekrup soket | |
| 20. | VOE14550896 | [1] | Pengangkut | |
| 21. | SA7118-34410 | [1] | Pengangkut | |
| 22. | SA7118-34420 | [3] | Peralatan Planet | |
| 23. | VOE14550897 | [3] | Pin | |
| 24. | SA7118-34440 | [3] | Pengisi jarum | |
| 25. | SA7118-34450 | [3] | Mesin cuci | |
| 26. | SA7118-34460 | [3] | Mesin cuci | |
| 27. | SA9541-01085 | [3] | Cincin penahan | |
| 28. | SA9325-08010 | [3] | Pin pegas | |
| 29. | SA7118-34470 | [1] | Peralatan | |
| 30. | SA7118-34480 | [1] | Mesin cuci | |
| 31. | SA7118-34490 | [1] | Peralatan matahari | |
| 32. | VOE984354 | [8] | Hex. sekrup soket | |
| 33. | VOE14514384 | [1] | Pipa | SER NO 10001-12701SER NO 30001-30199 |
| VOE14540597 | [1] | Pipa | SER NO 12702-SER NO 30200- | |
| 34. | SA1012-01500 | [1] | Katup | |
| 35. | [1] | Casing | ||
| 36. | SA9541-01085 | [1] | Cincin penahan | |
| 37. | VOE949329 | [1] | Gasket | |
| 100. | VOE14526215 | [1] | Kit perbaikan | |
| 200. | VOE14627726 | [1] | Perumahan | inc 15,16,35 |
