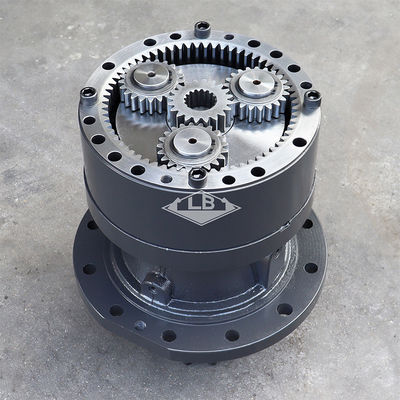

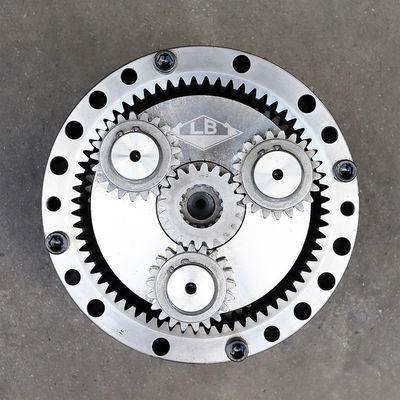

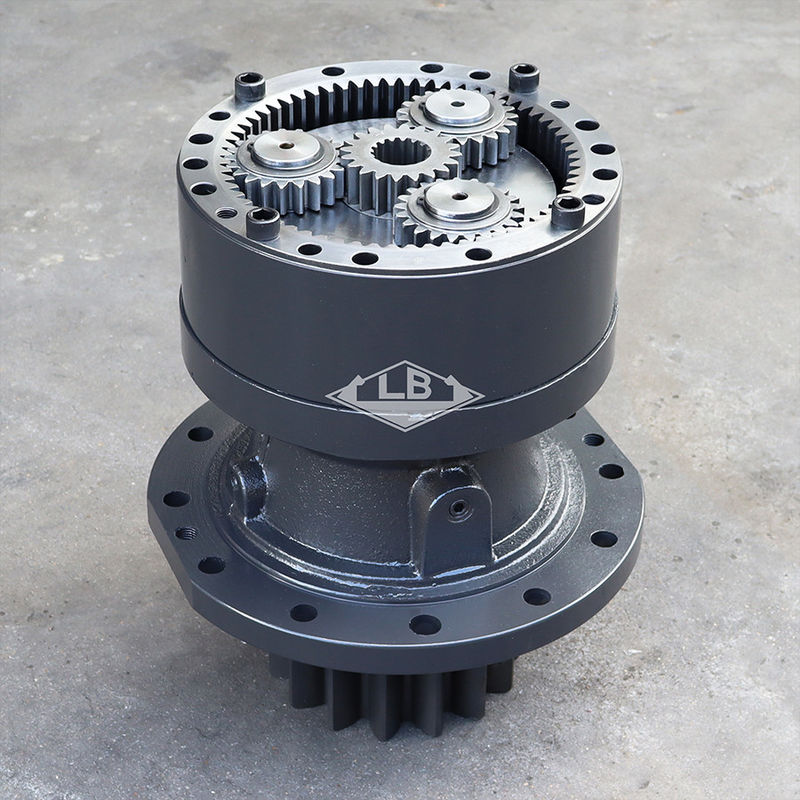

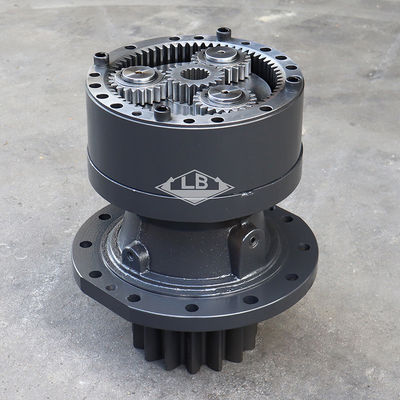

31QB-10140 31QB-10141 Kotak Swing Gear Excavator R450-7 R520-9 Swing Motor Assembly
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 31QB-10140 kotak gir swing excavator,31QB-10141 kotak gir swing excavator,R520-9 kumpulan motor ayunan |
||
|---|---|---|---|
Deskripsi Produk
R450-7 R520-9 Swing motor assembly 31QB-10140 31QB-10141 R450-7 Swing gearbox
Parameter produk
| Pnama seni | R450-7 R520-9 Swing gearbox | |||||
| Peralatan | Memohon untuk HYUNDAI EXKAVATOR | |||||
| Bagian no. | 31QB-10140 31QB-10141 | |||||
| NO.1 gigi spline gear matahari | 16 spline | |||||
| Gigi poros swing pinion | 15T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 180kg | |||||
| MOQ | 1 pcs | |||||
Deskripsi Produk
Bagian-bagian pada kelompok SWING REDUCTION GEAR (TYPE 2, #0856-):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | @ | [1] | Swing Motor ASSY | SEE 4105 |
| *-2. | 31QB-10140 | [1] | Gear pengurangan ayunan | |
| 1. | XKAQ-00637 | [1] | KASING | |
| 2. | XKAQ-00752 | [1] | SHAFT-DRIVE | |
| 2. | XKAQ-00645 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00026 | [1] | Berkas-Roller | |
| 4. | XKAQ-00032 | [1] | SEAL-OIL | |
| 5. | XKAQ-00029 | [1] | Berkas-Roller | |
| 5. | XKAQ-00647 | [1] | Berkas-Roller | |
| 5. | XKAQ-00961 | [1] | Berkas-Roller | |
| 6. | XKAQ-00753 | [1] | Pengangkut ASSY 2 | |
| 7. | XKAQ-00075 | [1] | Pengangkut 2 | |
| 8. | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 9. | XKAQ-00643 | [3] | PIN ASSY 2 | |
| 10. | XKAQ-00070 | [1] | PIN 2 | INCL 11 |
| N11. | XKAQ-00291 | [1] | BUSHING 2 | |
| 12. | XKAQ-00644 | [6] | Kekuatan pencuci | |
| 13. | XKAQ-00048 | [6] | Pin-SPRING | |
| 14. | XKAQ-00754 | [1] | Pengangkut ASSY 1 | |
| 15. | XKAQ-00531 | [1] | Pengangkut 1 | |
| 16. | XKAQ-00646 | [3] | GEAR-PLANET 1 | |
| 17. | XKAQ-00415 | [3] | PIN 1 | |
| 18. | XKAQ-00030 | [3] | Jarum kandang | |
| 19. | XKAQ-00417 | [3] | Plat 1 sisi | |
| 20. | XKAQ-00416 | [3] | Plat 2 sisi | |
| 21. | XKAQ-00041 | [3] | RING-STOP | |
| 22. | XKAQ-00755 | [1] | Gear-SUN 2 | |
| 23. | XKAQ-00648 | [1] | Gear-SUN 1 | |
| 24. | XKAQ-00534 | [1] | Sisi Plat 3 | |
| 25. | XKAQ-00649 | [1] | GANG-RING | |
| 25. | XKAQ-00779 | [1] | GANG-RING | |
| 26. | XKAQ-00072 | [2] | PIN-KNOCK | |
| 27. | XKAQ-00404 | [1] | Plate-thrust | |
| 28. | XKAQ-00074 | [1] | RING-STOP | |
| 29. | XKAQ-00287 | [1] | Gear-pinion | tua |
| 29. | XKAQ-00978 | [1] | Gear-pinion | Baru |
| 30. | XKAQ-00018 | [1] | SPACER | |
| 31. | XKAQ-00031 | [1] | Plat-COVER | |
| 32. | XKAQ-00064 | [8] | BOLT-HEX | |
| 33. | XKAQ-00043 | [1] | PLATE-LOCK | |
| 34. | XKAQ-00042 | [2] | BOLT-HEX | |
| 35. | XKAQ-00044 | [1] | LAMPUNG LAUNCHER | |
| 36. | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 37. | XKAQ-00049 | [1] | PLUG | |
| 38. | XKAQ-00274 | [2] | PLUG |
