Detail produk:

Harga terbaik Kontak

Informasi Detail
Menyoroti:

39Q6-12100 Swing Gearbox

,

39Q6-12101 Swing Gearbox

,

R220-9 peralatan pengurangan ayunan

Deskripsi Produk

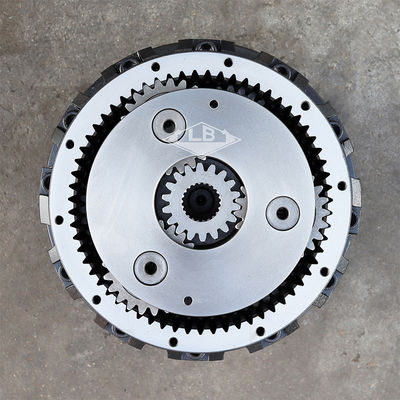

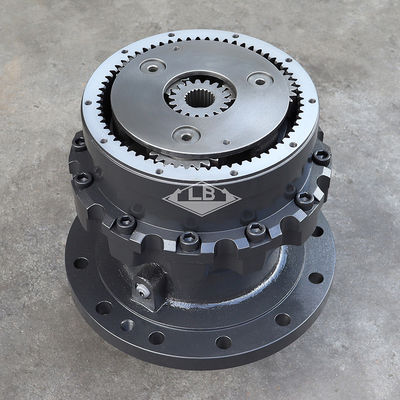

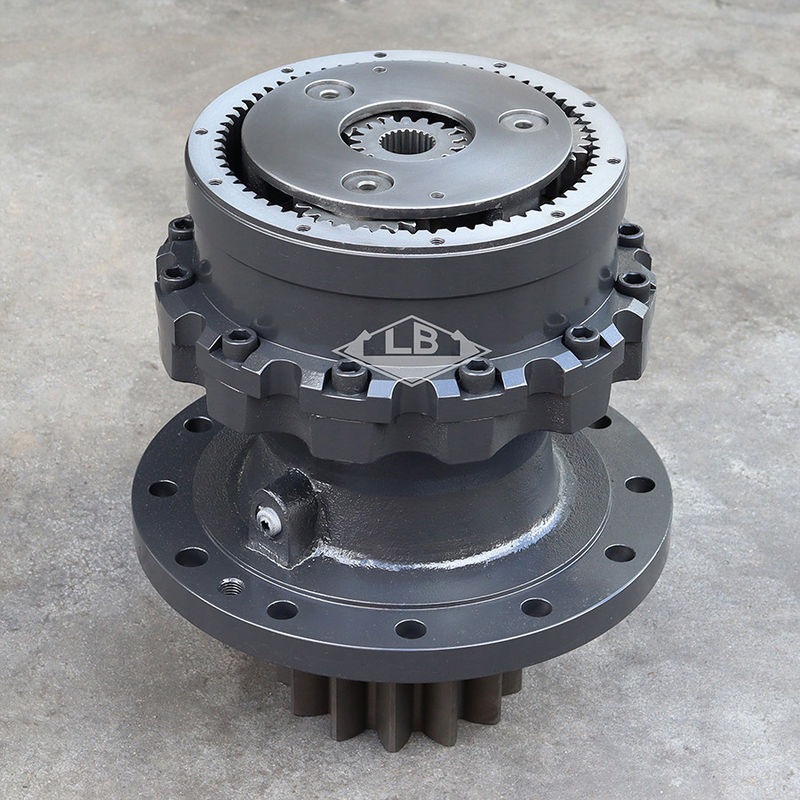

R210-9 R220-9 Swing REDUCTION GEAR 39Q6-12100 39Q6-12101 39Q6-12102 R220-9 Swing GEARBOX

Parameter produk
Pnama seni R210-9 R220-9 Swing gearbox
Peralatan Memohon untuk HYUNDAI EXKAVATOR
Bagian no. 39Q6-12100 39Q6-12101
NO.1 gigi spline gear matahari 22 spline
Gigi poros swing pinion 13T
Kondisi barang Baru
Logo LB
Berat kotor 180kg
MOQ 1 pcs

Deskripsi Produk

39Q6-12100 39Q6-12101 39Q6-12102 R220-9 Swing Gearbox R210-9 R220-9 Swing Reduction Gear 039Q6-12100 39Q6-12101 39Q6-12102 R220-9 Swing Gearbox R210-9 R220-9 Swing Reduction Gear 139Q6-12100 39Q6-12101 39Q6-12102 R220-9 Swing Gearbox R210-9 R220-9 Swing Reduction Gear 2

Bagian-bagian pada GANG REDUCTION SWING GROUP (TYPE 2 & 3):

39Q6-12100 39Q6-12101 39Q6-12102 R220-9 Swing Gearbox R210-9 R220-9 Swing Reduction Gear 3

Posisi. Bagian No. Qty Nama bagian Komentar
* @ [1] Swing Motor ASSY SEE 4115
*-2. 39Q6-12100 [1] Gear pengurangan ayunan HYMS
*-2. 39Q6-12101 [1] Gear pengurangan ayunan HYMS
*-2. 39Q6-12102 [1] Gear pengurangan ayunan HYMS
1. 39Q6-12110 [1] GANG-RING
2. 39Q6-12121 [1] SHAFT-DRIVE
3. 39Q6-12130 [1] TAPER BEARING.MAIN
4. 39Q6-12140 [1] Taper bantalan
5. 39Q6-12150 [1] NUT-RING
6. 39Q6-12161 [1] PLATE-LOCK
7. S017-120166 [4] BOLT-HEX
8. 39Q6-12171 [1] KASING
8. 39Q6-12172 [1] KASING
9. S109-100306 [10] BOLT-SOCKET
10. 39Q6-12190 [1] Pengangkut 2
11. 39Q6-12200 [3] Gear-Planetary 2
12. 39Q6-12210 [6] Jaring-jarum 2
13. 39Q6-12220 [6] WASHER-THRUST 2
14. 39Q6-12230 [3] Pembawa PIN 2
15. S472-800364 [3] Pin-SPRING
16. 39Q6-12240 [1] Gear-SUN 2
17. 39Q6-12260 [1] Pengangkut 1
18. 39Q6-12271 [3] Gear-Planetary 1
19. 39Q6-12280 [3] Jarum bantalan 1
20. 39Q6-12290 [3] WASHER-THRUST 1, UP
21. 39Q6-12300 [3] WASHER-THRUST 1, rendah
22. 39Q6-12310 [3] PIN-CARRIER 1
23. S472-600364 [3] Pin-SPRING
24. 39Q6-12320 [1] Gear-SUN 1
25. 39Q6-12330 [2] Plate-thrust
26. 39Q6-12340 [1] Sleeve
27. S631-120001 [1] O-RING
28. 39Q6-12350 [1] SEAL-OIL
29. 39Q6-41450 [2] PIN-PARALEL
30. S109-16045D [12] BOLT-SOCKET
31. 39Q6-12360 [1] NAME PLATE (Plat Nama)
31. 39Q6-12361 [1] NAME PLATE (Plat Nama)
31. 39Q6-12362 [1] NAME PLATE (Plat Nama)
32. 39Q6-41800 [2] RIVET
33. P220-430204 [1] PLUG-HEX
*-1. @ [1] Unit Swing Motor SEE 4115
K1. 39Q6-12180 [1] Pengangkut ASSY KIT 1 Lihat ILLUST
K2. 39Q6-12250 [1] Pengangkut ASSY KIT 2 Lihat ILLUST
