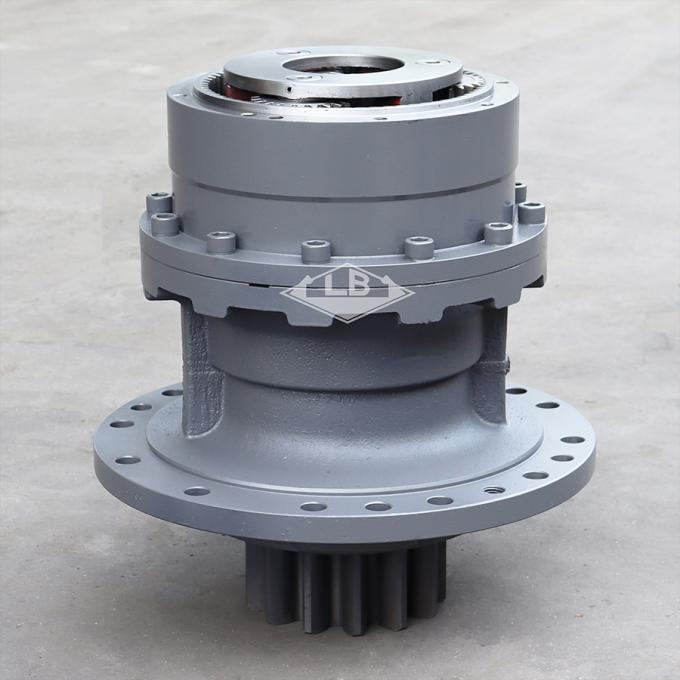

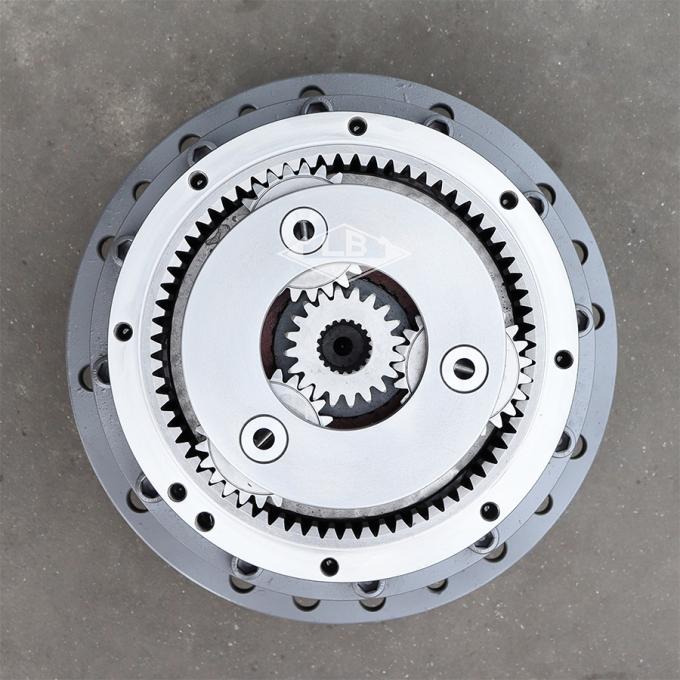

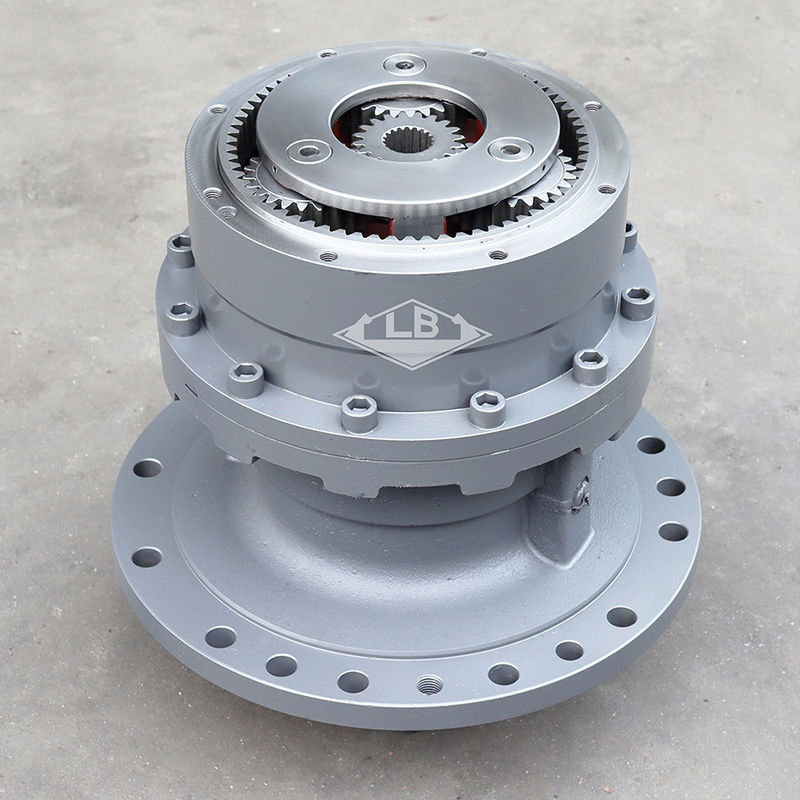

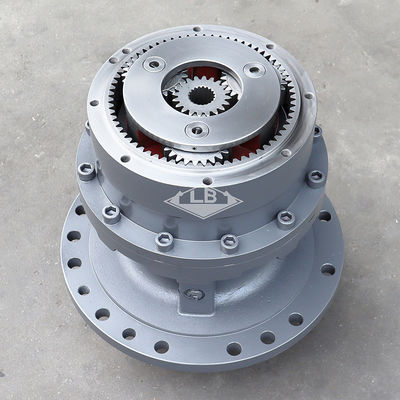

9260804 9262916 ZX200-3 Swing Gearbox ZX200-3 Swing Reduction Gear
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 9262916 Swing Gearbox,ZX200-3 Swing Gearbox,ZX200-3 Gear pengurangan ayunan |
||
|---|---|---|---|
Deskripsi Produk
ZX200-3 Swing reducer gear 9260804 9262916 ZX200-3 swing gearbox
Parameter produk
| Pnama seni | ZX200-3 swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9260804 9262916 | |||||
| NO.1 gigi spline gear matahari | 19splines | |||||
| Gigi poros swing pinion | 13T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 230 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada kelompok T.MISSION (SWING):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9260804 | [1] | T.MISSION (Swing) | Aku 9262916 < untuk perakitan mesin> | |
| 9262916 | [1] | T.MISSION (Swing) | ||
| 00. | 1033370 | [1] | Perumahan | |
| 01. | 2053199 | [1] | SHAFT;PROP. | |
| 02. | 3083742 | [1] | Sleeve | |
| 03. | A811120 | [1] | O-RING | |
| 04. | 4402481 | [1] | BRG.; ROL. | |
| 06. | 4411535 | [1] | SEAL; Minyak | |
| 07. | 4402637 | [1] | BRG.; ROL. | Y 4667150 |
| 07. | 4667150 | [1] | BRG.; ROL. | |
| 08. | 3099830 | [1] | NUT | |
| 09. | 4474191 | [1] | PLATE;LOCK | |
| 10. | J901016 | [2] | BOLT | |
| 11. | 1031849 | [1] | Pengangkut | |
| 12. | 4187590 | [1] | PLATE;THRUST | |
| 13. | 3099815 | [3] | Gear;Planetary | |
| 14. | 4336929 | [3] | PLATE;THRUST | |
| 15. | 4488904 | [3] | PIN | |
| 16. | 4027427 | [3] | PIN;SPRING | |
| 17. | 4438593 | [6] | BRG.; jarum | |
| 18. | 3099795 | [1] | Gear;SUN | |
| 20. | 1032548 | [1] | Gear;RING | |
| 21. | M341645 | [12] | BOLT;SOCKET | |
| 23. | 1031817 | [1] | Pengangkut | |
| 24. | 4403371 | [1] | PLATE;THRUST | |
| 25. | 3102045 | [3] | Gear;Planetary | |
| 26. | 4404506 | [3] | BRG.; jarum | |
| 27. | 4403082 | [3] | PLATE;THRUST | |
| 28. | 4336923 | [3] | PIN | |
| 29. | 4051262 | [3] | PIN;SPRING | |
| 30. | 3084056 | [1] | Gear;SUN | |
| 31. | 3089362 | [1] | PIPE | |
| 32. | 94-2012 | [1] | PLUG | |
| 33. | 4445354 | [2] | PLUG |
