9243323 9258608 ZX240-3 Swing Gearbox ZX240-3 ZX250-3 Swing Device
Detail produk:
Harga terbaik Kontak|
Informasi Detail |
|||
| Menyoroti: | 9243323 kotak gir swing excavator,9258608 ZX240-3 kotak gir swing excavator,ZX250-3 Perangkat Swing |
||
|---|---|---|---|
Deskripsi Produk

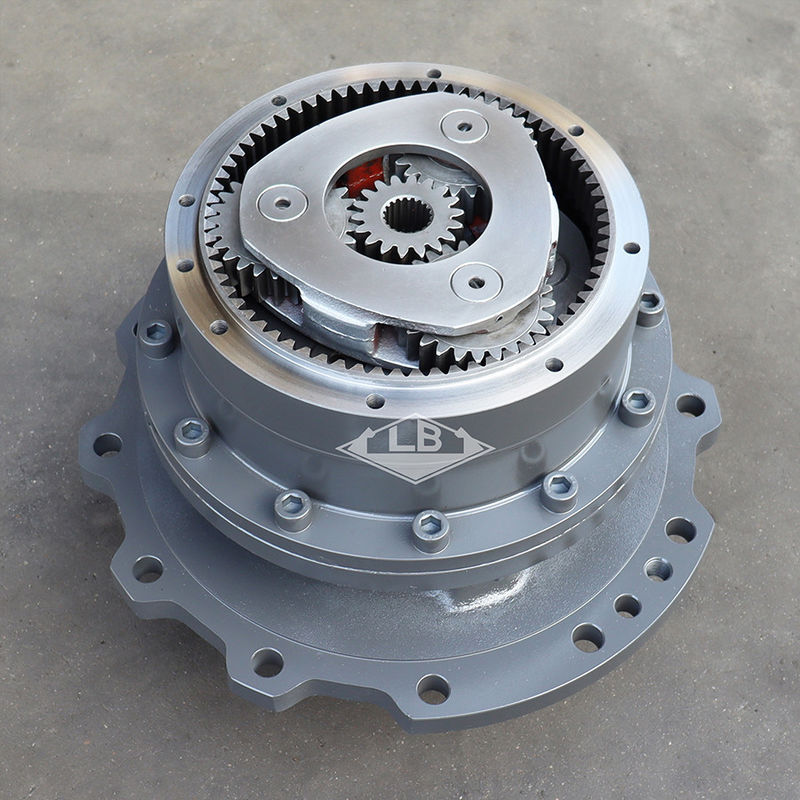

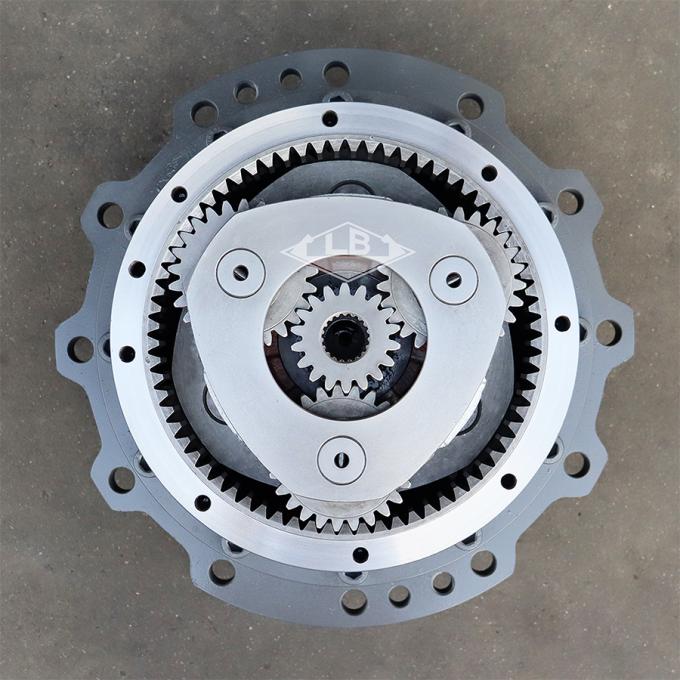

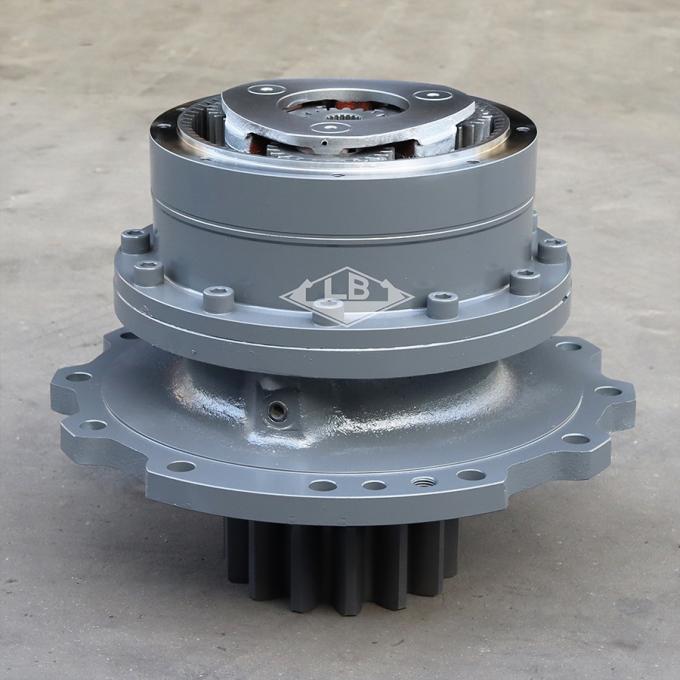

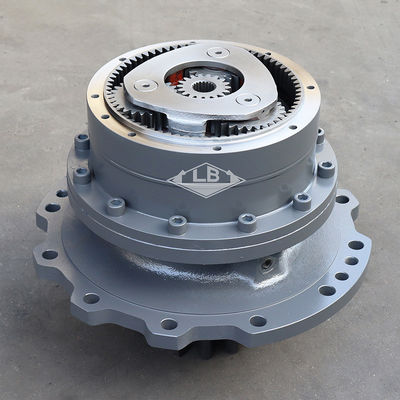

ZX240-3 ZX250-3 Swing Device 9243323 9258608 ZX240-3 Swing Gearbox
Parameter produk
| Pnama seni | ZX240-3 ZX250-3 swing gearbox | |||||
| Peralatan | Mendaftar untuk HITACHI EXKAVATOR | |||||
| Bagian no. | 9243323 9258608 | |||||
| NO.1 gigi spline gear matahari | 19splines | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 240 KG | |||||
| MOQ | 1 pcs | |||||
Deskripsi produk
Bagian pada kelompok T.MISSION (SWING):
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| 9243323 | [1] | T.MISSION (Swing) | Aku 9258608 < untuk perakitan mesin> | |
| (9258608) | [1] | T.MISSION (Swing) | ||
| 00. | 1033257 | [1] | Perumahan | |
| 01. | 2051711 | [1] | SHAFT;PROP. | |
| 02. | 3085038 | [1] | Sleeve | |
| 03. | A811130 | [1] | O-RING | |
| 04. | 4417903 | [1] | BRG.; ROL. | |
| 05. | 4417906 | [1] | SEAL; Minyak | |
| 07. | 4417904 | [1] | BRG.; ROL. | |
| 08. | 3103179 | [1] | NUT | |
| 09. | 4474191 | [1] | PLATE;LOCK | |
| 10. | J901016 | [2] | BOLT | |
| 11. | 1032202 | [1] | Pengangkut | |
| 12. | 4194454 | [1] | PLATE;THRUST | |
| 13. | 4488904 | [3] | PIN | |
| 14. | 3101724 | [3] | Gear;Planetary | |
| 15. | 4438593 | [6] | BRG.; jarum | |
| 16. | 4336929 | [3] | PLATE;THRUST | |
| 17. | 4027427 | [3] | PIN;SPRING | |
| 18. | 3084656 | [1] | Gear;SUN | |
| 20. | 1032203 | [1] | Gear;RING | |
| 21. | M341840 | [12] | BOLT;SOCKET | |
| 23. | 1026812 | [1] | Pengangkut | |
| 24. | 4187590 | [1] | PLATE;THRUST | |
| 25. | 4341941 | [3] | PIN | |
| 26. | 3084652 | [3] | Gear;Planetary | |
| 27. | 4354748 | [3] | BRG.; jarum | |
| 28. | 4347635 | [3] | PLATE;THRUST | |
| 29. | 4144018 | [3] | PIN;SPRING | |
| 31. | 3084649 | [1] | Gear;SUN | |
| 33. | 3088126 | [1] | PIPE | |
| 34. | 4445354 | [2] | PLUG | |
| 36. | 94-2012 | [1] | PLUG | |
| 37. | +++++++ | [1] | NAME-PLATE | |
| 38. | M492564 | [2] | Screw; Drive |
