Informasi Detail |
|||
| Menyoroti: | Swing Gearbox VOE14609494,Swing Gearbox VOE14619958,VOE14633288 |
||
|---|---|---|---|
Deskripsi Produk

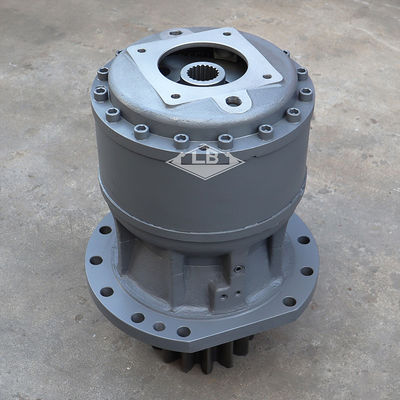

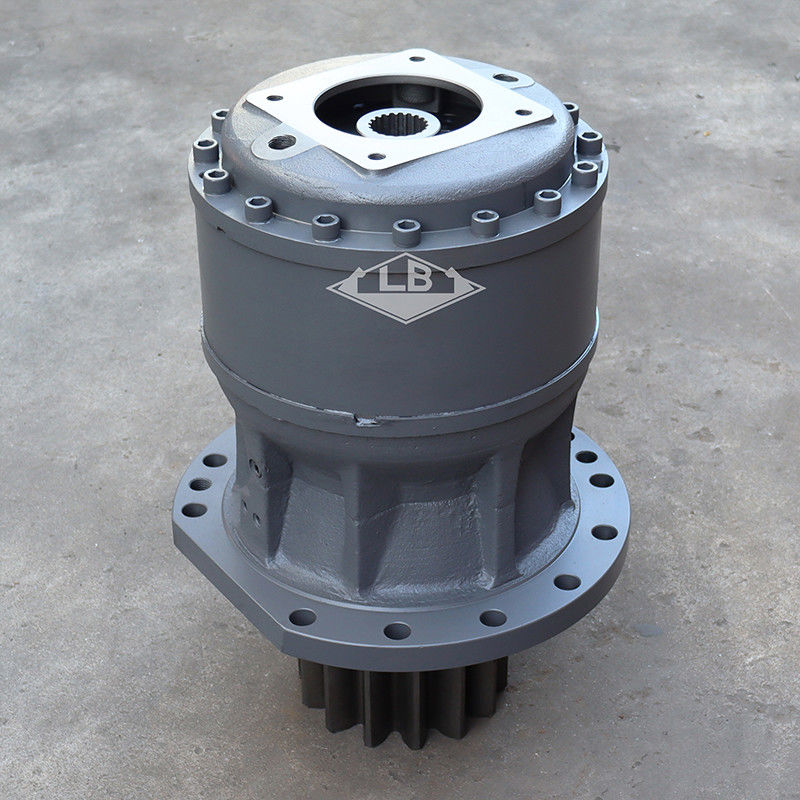

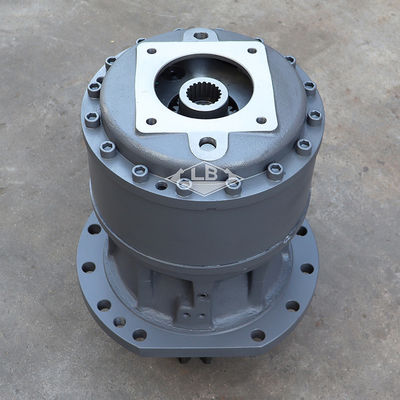

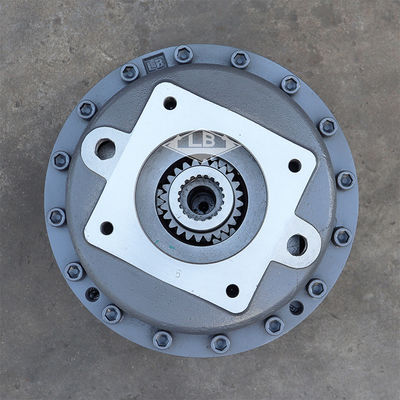

VOE14609494 VOE14619958 VOE14633288 Volvo EC700 Swing gearbox
Parameter produk
| Pnama seni | EC700 Swing gearbox | |||||
| Peralatan | Terapkan pada VOLVO EXKAVATOR | |||||
| Bagian no. | VOE14609494 VOE14619958 VOE14633288 | |||||
| NO.1 gigi spline gear matahari | 20 spline | |||||
| Gigi poros swing pinion | 14T | |||||
| Kondisi barang | Baru | |||||
| Logo | LB | |||||
| Berat kotor | 325 KG | |||||
| MOQ | 1 pcs | |||||

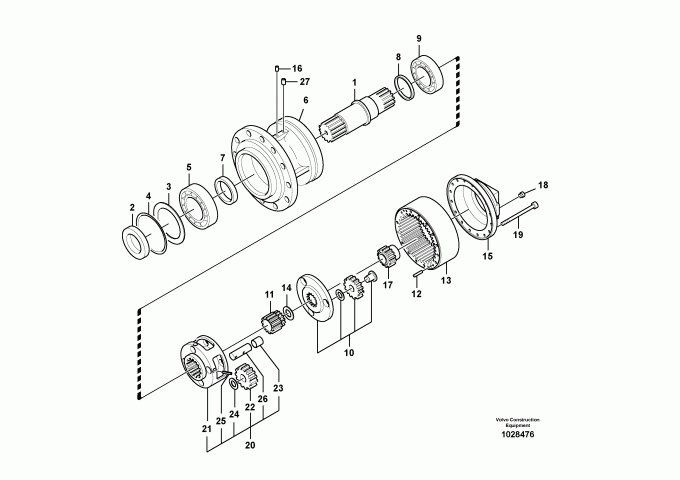

Bagian pada grup Swing gearbox:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| VOE14609494 | [1] | Kotak gir swing | ||
| 1. | VOE14596604 | [1] | Selang | |
| 2. | VOE14596608 | [1] | Kerah | |
| 3. | VOE14596607 | [1] | Piring | |
| 4. | VOE14596610 | [1] | Cincin | |
| 5. | VOE14547261 | [1] | Bantalan | |
| 6. | VOE14535296 | [1] | Kasus | |
| 7. | VOE14596605 | [1] | Kerah | |
| 8. | VOE14596611 | [1] | Segel | |
| 9. | VOE14640028 | [1] | Bantalan | |
| 10. | VOE14609496 | [1] | Planet Carrier | |
| 11. | VOE14596620 | [1] | Peralatan | |
| 12. | SA9324-21317 | [4] | Pin | |
| 13. | VOE14596613 | [1] | Peralatan | |
| 14. | VOE14596621 | [1] | Mesin pencuci dorongan | |
| 15. | VOE14596630 | [1] | Tutup | |
| 16. | SA9415-43012 | [1] | Plug | |
| 17. | VOE14609499 | [1] | Peralatan | |
| 18. | SA9415-43052 | [1] | Plug | |
| 19. | VOE993162 | [16] | Hex. sekrup soket | |
| 20. | VOE14596614 | [1] | Pembawa planet | |
| 21. | SA8230-22660 | [1] | Pembawa planet | |
| 22. | VOE14596616 | [4] | Peralatan | |
| 23. | VOE14596617 | [4] | Pembuangan | |
| 24. | VOE14596618 | [4] | Mesin cuci | |
| 25. | VOE952004 | [4] | Pin pegas | |
| 26. | VOE14596619 | [4] | Pin | |
| 27. | SA9415-43042 | [1] | Plug | |
| 100. | VOE14568717 | [1] | Kit perbaikan |
